0086-4 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

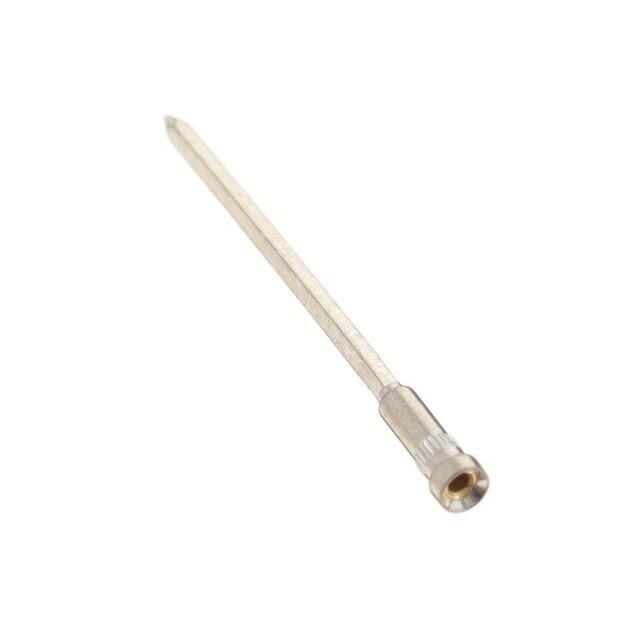

CONN RECEPT PIN WRAPOST .630"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0086-4-17-01-30-14-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Gold	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin	4.12 mm	0.162 in	0.823 in	20.9 mm
Mill-Max Manufacturing Corp. 0086-4-17-80-30-27-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Gold	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	0.823 in	20.9 mm
Mill-Max Manufacturing Corp. 0086-4-17-01-30-27-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Gold	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	0.823 in	20.9 mm
Mill-Max Manufacturing Corp. 0086-4-17-15-30-14-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Gold	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin	4.12 mm	0.162 in	0.823 in	20.9 mm
Mill-Max Manufacturing Corp. 0086-4-17-15-30-27-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Gold	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	4.12 mm	0.162 in	0.823 in	20.9 mm
Mill-Max Manufacturing Corp. 0086-4-17-01-30-02-02-0	-55 C	125 °C	0.071 in	1.8 mm	Wire Wrap	0.025 in	0.64 mm	Tin-Lead	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	1.45 mm	0.057 in	Press-Fit	2.54 µm	100 µin	4.12 mm	0.162 in	0.823 in	20.9 mm
