KHNA30F Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 30W

Part	DC Voltage - Input (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Approval Agency	Power (Watts)	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Standard Number	DC Voltage - Input (Min) [Min]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1	Voltage - Isolation	Efficiency	Current - Output (Max)

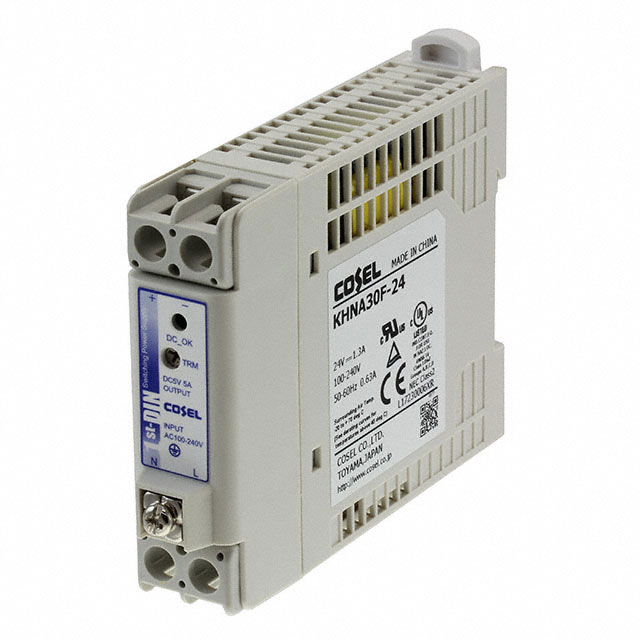

Cosel USA, Inc. KHNA30F-24	370 V	ITE (Commercial)	1.97 in	4.88 in	4.77 in	121.2 mm	50 mm	124 mm	1	CE cULus cURus TUV	30 Watts	264 VAC	85 VAC	1.3 A	60950-1	120 V	AC or DC	-20 ░C	70 °C	Adjustable Output PFC Remote On/Off Universal Input	24 V	3000 V

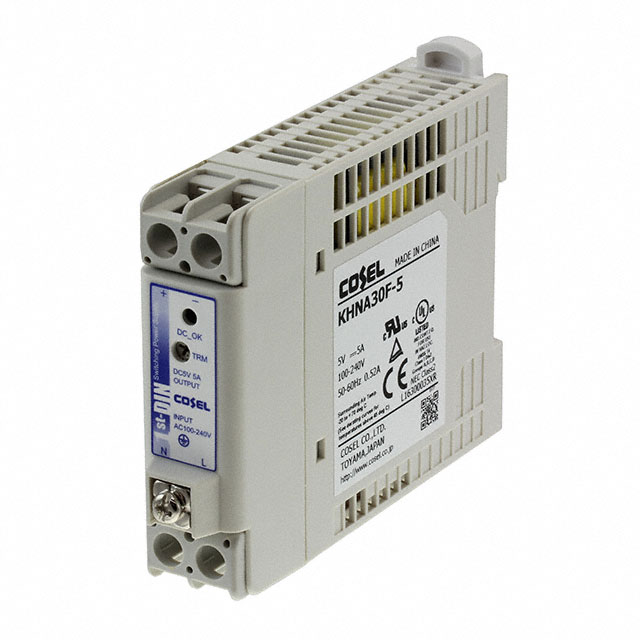

Cosel USA, Inc. KHNA30F-5	370 V	ITE (Commercial)	1.97 in	4.88 in	4.77 in	121.2 mm	50 mm	124 mm	1	CE cULus cURus TUV	30 Watts	264 VAC	85 VAC		60950-1	120 V	AC or DC	-20 ░C	70 °C	Adjustable Output PFC Universal Input	5 V	3000 V	85 %	5 A
Cosel USA, Inc. KHNA30F-12	370 V	ITE (Commercial)	1.97 in	4.88 in	4.77 in	121.2 mm	50 mm	124 mm	1	CE cULus cURus TUV	30 Watts	264 VAC	85 VAC	2.3 A	60950-1	120 V	AC or DC	-20 ░C	70 °C	Adjustable Output PFC Remote On/Off Universal Input	12 V	3000 V	88.5 %
