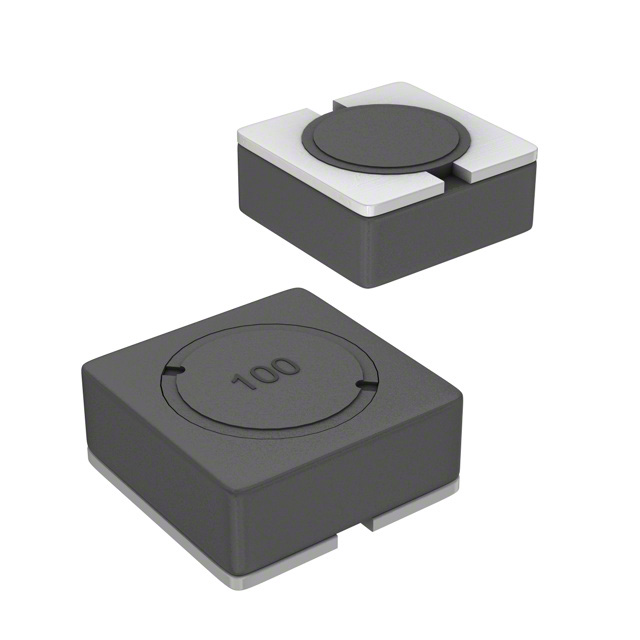

SRR6028 Series

Catalog

IND6.8X6.8X2.8MM,680UH30%0.22A,SHDSMD /TAPE & REEL - 7" REEL

Part	DC Resistance (DCR)	Mounting Type	Frequency - Self Resonant	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance Frequency - Test	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Type	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Current - Saturation (Isat)	Package / Case	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]
Bourns Inc. SRR6028-681Y	3.1 Ohm	Surface Mount	8 MHz	680 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	13 796 kHz	6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	200 mA	Nonstandard	0.22 A
Bourns Inc. SRR6028-270Y	130 mOhm	Surface Mount	19 MHz	27 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	1 A	Nonstandard	1.2 A	2.52 MHz	9
Bourns Inc. SRR6028-150Y		Surface Mount	22 MHz	15 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	2.52 MHz 9.5	6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	1.3 A	Nonstandard	1.7 A			78 mOhm
Bourns Inc. SRR6028-390Y		Surface Mount	17 MHz	39 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	750 mA	Nonstandard	1 A	2.52 MHz	10	195 mOhm
Bourns Inc. SRR6028-221Y		Surface Mount	12 MHz	220 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	360 mA	Nonstandard	0.45 A	796 kHz	15	820 mOhm
Bourns Inc. SRR6028-8R6Y	56 mOhm	Surface Mount	28 MHz	8.6 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	2.52 MHz 8	6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	1.82 A	Nonstandard	2.1 A
Bourns Inc. SRR6028-470Y	235 mOhm	Surface Mount	16 MHz	47 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	720 mA	Nonstandard	920 mA	2.52 MHz	10
Bourns Inc. SRR6028-151Y		Surface Mount	13 MHz	150 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	12 796 kHz	6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	420 mA	Nonstandard	0.5 A			680 mOhm
Bourns Inc. SRR6028-120Y	70 mOhm	Surface Mount	24 MHz	12 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %		Nonstandard	1.9 A	2.52 MHz	10
Bourns Inc. SRR6028-180Y		Surface Mount	21 MHz	18 µH	0.118 "	3 mm	Shielded	100 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound		6.8 mm	0.268 "	0.268 in	6.8 mm	30 %	1.1 A	Nonstandard	1.5 A	2.52 MHz	9	85 mOhm
