EDZ300 Series

Catalog

TERM BLOCK 9POS 45DEG 5.08MM PCB

Part	Screw Thread	Clamp Material - Plating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Contact Material - Plating	Features	Mating Orientation	Mating Orientation	Voltage	Current	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Mounting Type	Positions Per Level	Pitch	Pitch	Color
On Shore Technology Inc. EDZ300/9	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	9	5.08 mm	0.2 in	Gray
On Shore Technology Inc. EDZ300/8	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	8	5.08 mm	0.2 in	Gray
On Shore Technology Inc. EDZ300/10	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	10	5.08 mm	0.2 in	Gray

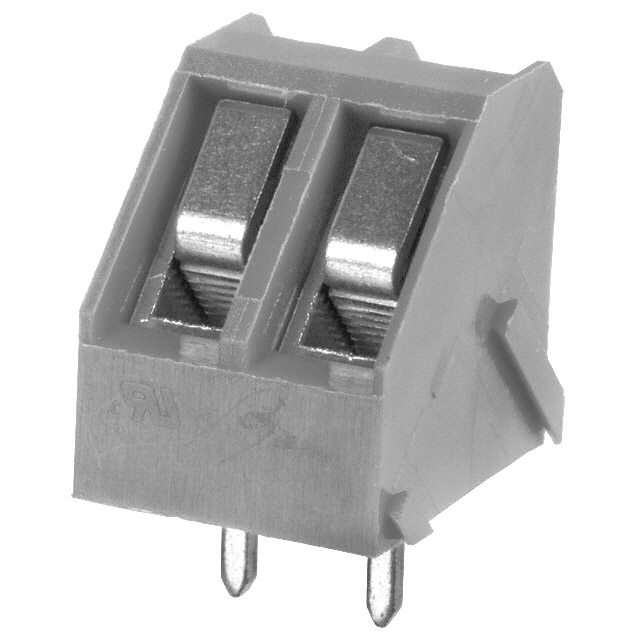

On Shore Technology Inc. EDZ300/2	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	2	5.08 mm	0.2 in	Gray
On Shore Technology Inc. EDZ300/3	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	3	5.08 mm	0.2 in	Gray
On Shore Technology Inc. EDZ300/6	M2.6	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Brass	Interlocking (Side)	135 °	45 °	300 VDC	15 A	Screw - Rising Cage Clamp	22 AWG	12 AWG	1	Through Hole	6	5.08 mm	0.2 in	Gray
