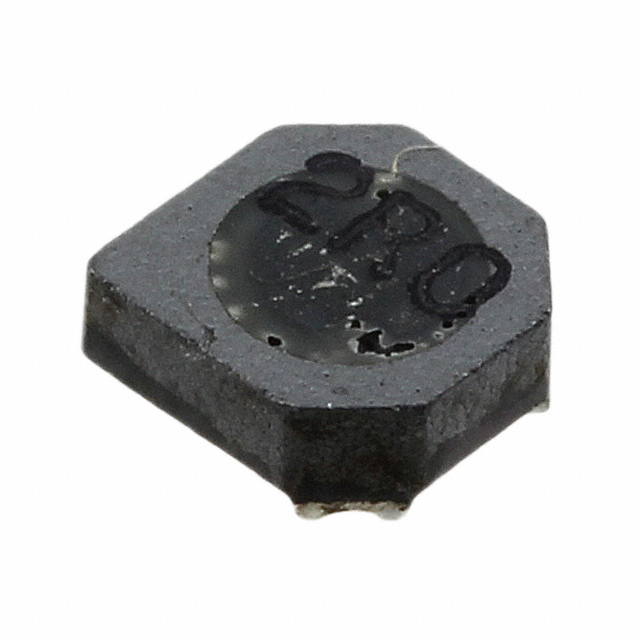

SRU3014 Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND3.3X3.5X1.4MM,22UH30%0.32A,SHDSMD /TAPE & REEL - 7" REEL
| Part | Current Rating (Amps) | Q @ Freq | Material - Core | Shielding | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Saturation (Isat) | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Self Resonant | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Tolerance | Inductance Frequency - Test | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 320 mA | 2.52 MHz 35 | Ferrite | Shielded | Nonstandard | 0.138 in | 3.5 mm | 3.3 mm | 0.13 in | 360 mA | 22 µH | 125 °C | -40 C | 25 MHz | Surface Mount | 1.6 mm | 0.063 in | 875 mOhm | 30 % | 100 kHz | Drum Core Wirewound |
Bourns Inc. | 700 mA | 7.96 MHz 10 | Ferrite | Shielded | Nonstandard | 0.138 in | 3.5 mm | 3.3 mm | 0.13 in | 780 mA | 6.8 µH | 125 °C | -40 C | 50 MHz | Surface Mount | 1.6 mm | 0.063 in | 230 mOhm | 30 % | 100 kHz | Drum Core Wirewound |
