842-108 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 108POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Pitch	Pitch	Mounting Type	Number of Positions	Contact Type	Number of Positions/Bay/Row	Number of Rows [custom]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Gender	Contact Finish	Termination	Features
EDAC Inc. 842-108-541-204	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Wire Wrap

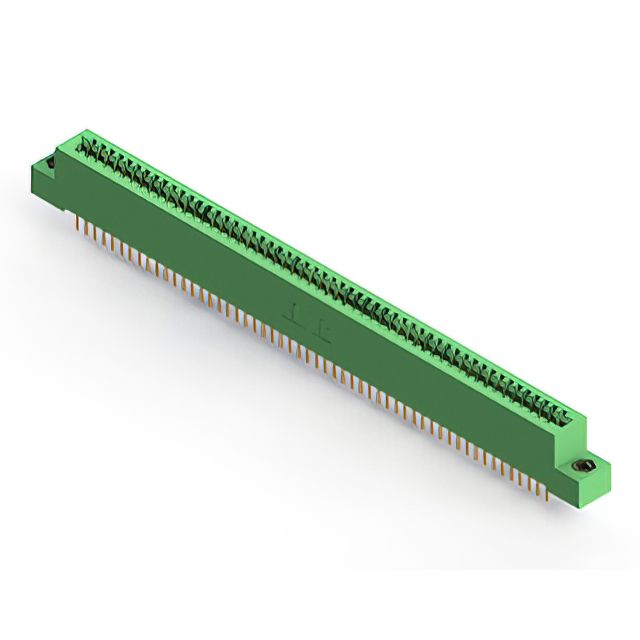

EDAC Inc. 842-108-524-208	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder

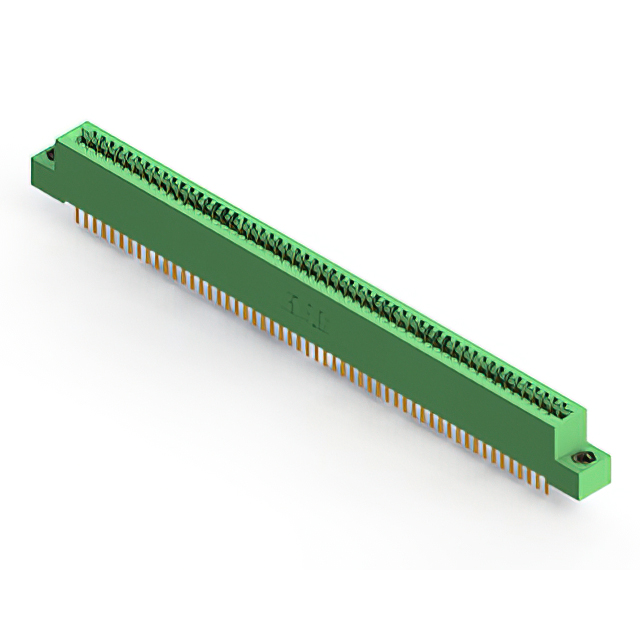

EDAC Inc. 842-108-520-208	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder

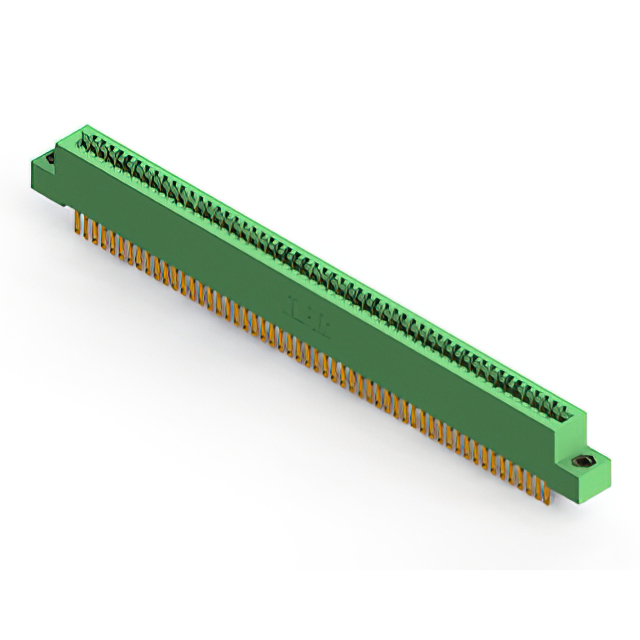

EDAC Inc. 842-108-500-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder Eyelet(s)

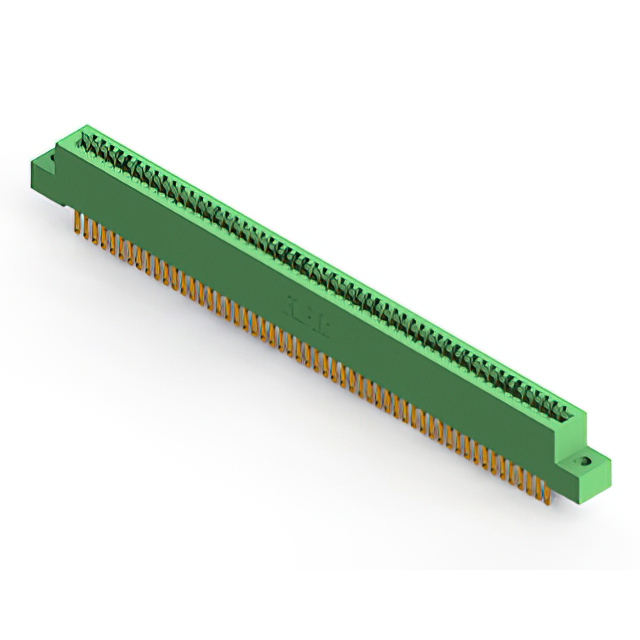

EDAC Inc. 842-108-500-202	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder Eyelet(s)
EDAC Inc. 842-108-558-203	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Green	0.1 "	2.54 mm	Right Angle Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder
EDAC Inc. 842-108-542-201	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin				Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Wire Wrap
EDAC Inc. 842-108-558-204	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	0.1 "	2.54 mm	Right Angle Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder

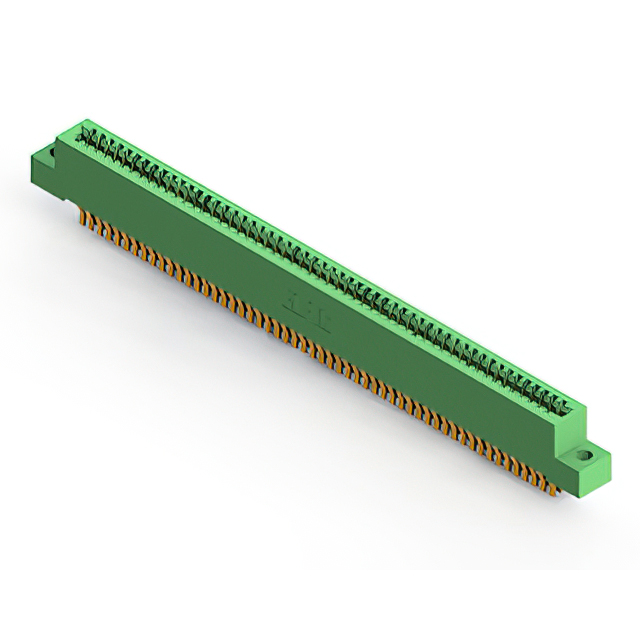

EDAC Inc. 842-108-560-204	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	0.1 "	2.54 mm	Board Edge Straddle Mount	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Solder	Card Extender
EDAC Inc. 842-108-540-202	Diallyl Phthalate (DAP)	2	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Green	0.1 "	2.54 mm	Through Hole	108	Cantilever	54	2	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	Female	Gold	Wire Wrap
