MP8756 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
EVAL BOARD FOR MP8756
| Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Utilized IC / Part | Contents | Current - Output | Voltage - Input | Frequency - Switching | Regulator Topology | Main Purpose | Voltage - Output | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) | Supplier Device Package | Voltage - Input (Max) [Max] | Mounting Type | Synchronous Rectifier | Voltage - Output (Max) [Max] | Output Type | Number of Outputs | Package / Case | Topology | Output Configuration | Function | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | MP8756 | Board(s) | 6 A | 12 VDC | 700 kHz | Buck | DC/DC Step Down | 1 V | |||||||||||||||

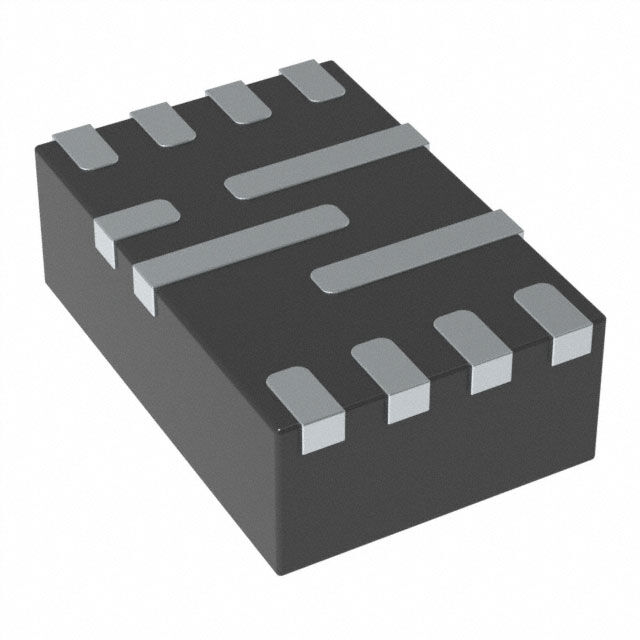

 Monolithic Power Systems Inc. | 6 A | 700 kHz | 4.5 V | 0.6 V | 12-QFN (2x3) | 26 V | Surface Mount | 5.5 V | Adjustable | 1 | 12-PowerVFQFN | Buck | Positive | Step-Down | -40 C | 125 °C | |||||||||||
 Monolithic Power Systems Inc. | 6 A | 700 kHz | 4.5 V | 0.6 V | 12-QFN (2x3) | 26 V | Surface Mount | 5.5 V | Adjustable | 1 | 12-PowerVFQFN | Buck | Positive | Step-Down | -40 C | 125 °C |
