trustability Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

Catalog

PRESSURE SENSOR, TRUSTABILITY, GAUGE, 0 MBAR, 100 MBAR, 5.25 VDC, 4.75 VDC, DIP

...

Part	Package / Case	Package / Case	Port Style	Port Size	Port Size	Port Size	Supplier Device Package	Accuracy	Output Type	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Pressure Type	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Max]	Output [Min]	Termination Style	Features	Operating Pressure	Maximum Pressure	Output	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case
Honeywell Sensing and Productivity Solutions SSCDRRN100MGAA5	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	Barbed	0.08 "	Dual Male Tube	1.93 mm	8-DIP	0.25 %	Analog Voltage	Through Hole	Board Mount	85 °C	-40 C	85 kPa	12.33 PSI	Vented Gauge	1.45 PSI	10 kPa	4.75 V	5.25 V	4.5 V	0.5 V	PC Pin	Amplified Output Temperature Compensated

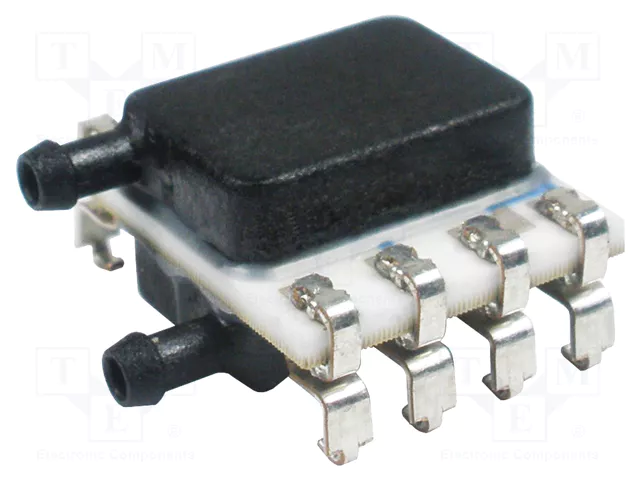

Honeywell Sensing and Productivity Solutions SSCMRRN001PDAA3	8-SMD J-Lead Dual Ports Same Side		Barbed	0.08 "	Dual Male Tube	1.93 mm	8-SMT	0.25 %	Analog Voltage	Surface Mount	Board Mount	85 °C	-40 C	68.95 kPa	10 PSI	Differential			3 V	3.6 V	2.97 V	0.33 V	SMD (SMT) Tab	Amplified Output Temperature Compensated	±1PSI (±6.89kPa)
Honeywell Sensing and Productivity Solutions SSCMRRN001ND2A3	8-SMD J-Lead Dual Ports Same Side		Barbed	0.08 "	Dual Male Tube	1.93 mm	8-SMT	0.25 %	I2C	Surface Mount	Board Mount	85 °C	-40 C	67.28 kPa		Differential	0.04 PSI	0.25 kPa	3.27 V	3.33 V			SMD (SMT) Tab	Amplified Output Temperature Compensated		9.76 PSI	12 b
Honeywell Sensing and Productivity Solutions SSCSSNN001PGAA5	4-SIP Module		No Port				4-SIP	0.25 %	Analog Voltage	Through Hole	Board Mount	85 °C	-40 C			Vented Gauge	1 PSI	6.89 kPa	4.75 V	5.25 V	4.5 V	0.5 V	PC Pin	Amplified Output Temperature Compensated				10 PSI	68.95 kPa
Honeywell Sensing and Productivity Solutions SSCMRRN005PDAA3	8-SMD J-Lead Dual Ports Same Side		Barbed	0.08 "	Dual Male Tube	1.93 mm	8-SMT	0.25 %	Analog Voltage	Surface Mount	Board Mount	85 °C	-40 C	206.84 kPa	30 PSI	Differential	5 PSI	34.47 kPa	3 V	3.6 V	2.97 V	0.33 V	SMD (SMT) Tab	Amplified Output Temperature Compensated
Honeywell Sensing and Productivity Solutions SSCMRRV015PD2A3	8-SMD J-Lead Dual Ports Same Side		Barbed	0.08 "	Dual Male Tube	2.03 mm	8-SMD	0.25 %	I2C	Surface Mount	Industrial Automation Medical Ventilation	85 °C	-40 C			Differential	15 PSI	103.42 kPa	3 V	3.6 V				Amplified Output Temperature Compensated			12 b	60 PSI	413.69 kPa
Honeywell Sensing and Productivity Solutions SSCMANN060PG2A3

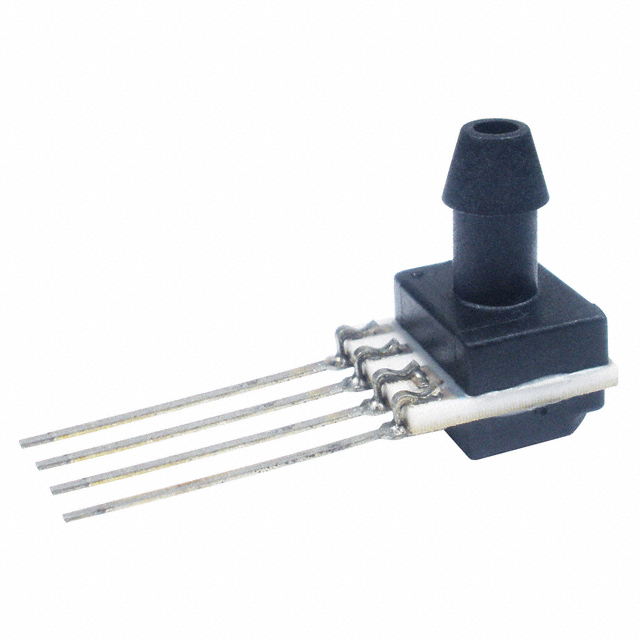

Honeywell Sensing and Productivity Solutions SSCSANT100PGAB3	4-SIP Side Port		Barbed	0.19 in	Male Tube	4.93 mm	4-SIP	0.25 %	Analog Voltage	Through Hole	Board Mount	85 °C	-40 C	1723.69 kPa	250 PSI	Vented Gauge	100 PSI	689.48 kPa	3 V	3.6 V	3.135 V	0.165 V	PC Pin	Amplified Output Temperature Compensated
Honeywell Sensing and Productivity Solutions SSCDDRD015PDAA5	8-DIP Dual Ports Opposite Sides	0.524 in	Barbed	0.08 "	Dual Male Tube	1.93 mm	8-DIP	0.25 %	Analog Voltage	Through Hole	Board Mount	85 °C	-40 C		60 PSI	Differential	15 PSI	103.42 kPa	4.75 V	5.25 V	4.5 V	0.5 V	PC Pin	Amplified Output Temperature Compensated						13.3 mm
Honeywell Sensing and Productivity Solutions SSCDJNN002ND2A3
