746-008 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 8POS 0.125

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Card Type	Contact Material	Gender	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Number of Rows	Color	Termination	Pitch	Pitch	Number of Positions

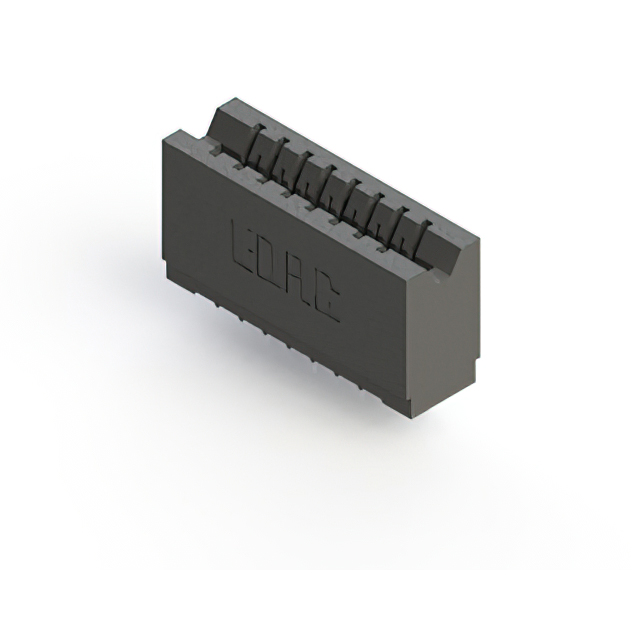

EDAC Inc. 746-008-525-506	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8
EDAC Inc. 746-008-540-506	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit Wire Wrap	3.18 mm	0.125 in	8

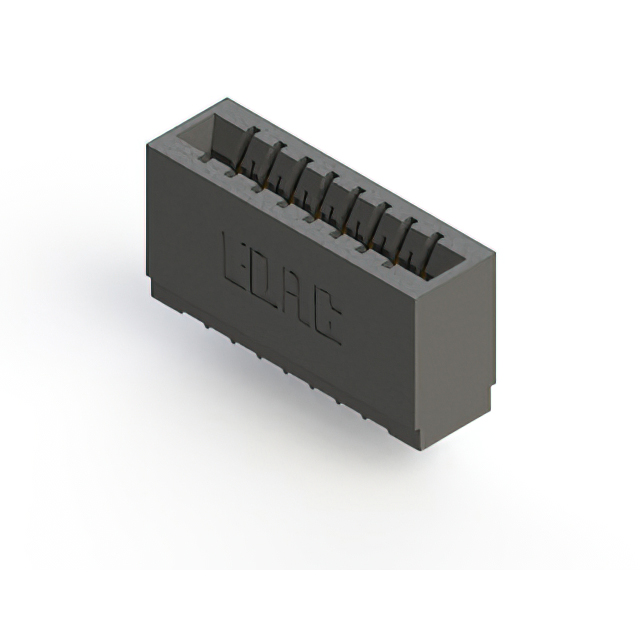

EDAC Inc. 746-008-527-501	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8

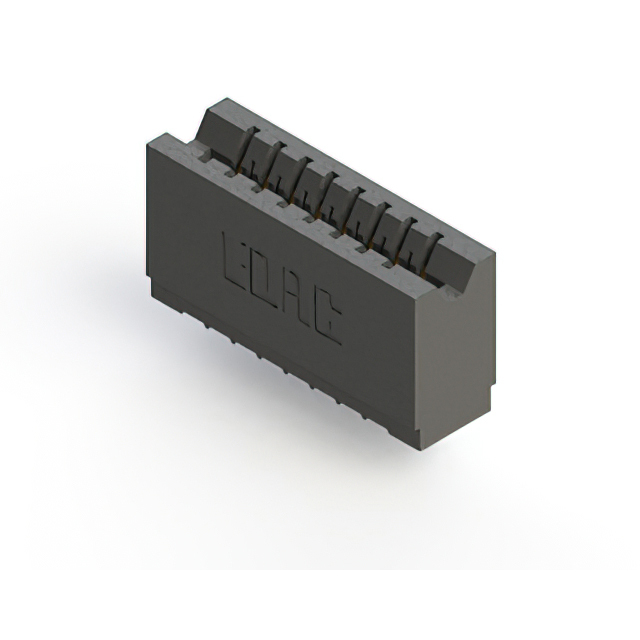

EDAC Inc. 746-008-527-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8

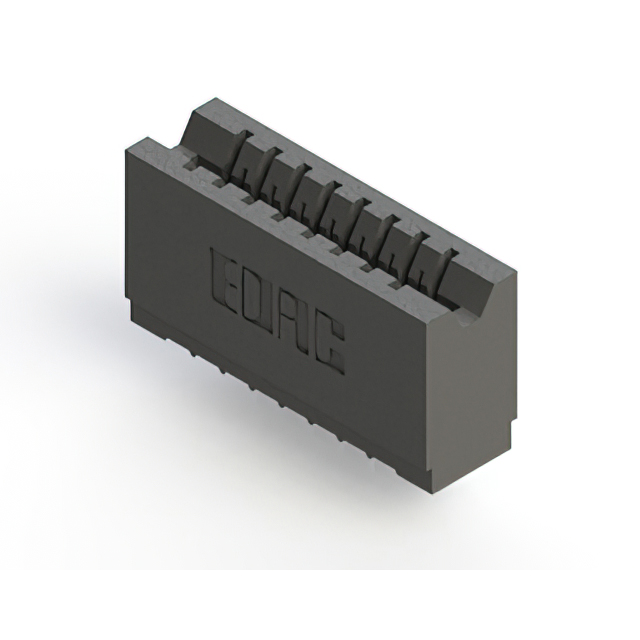

EDAC Inc. 746-008-520-106	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8

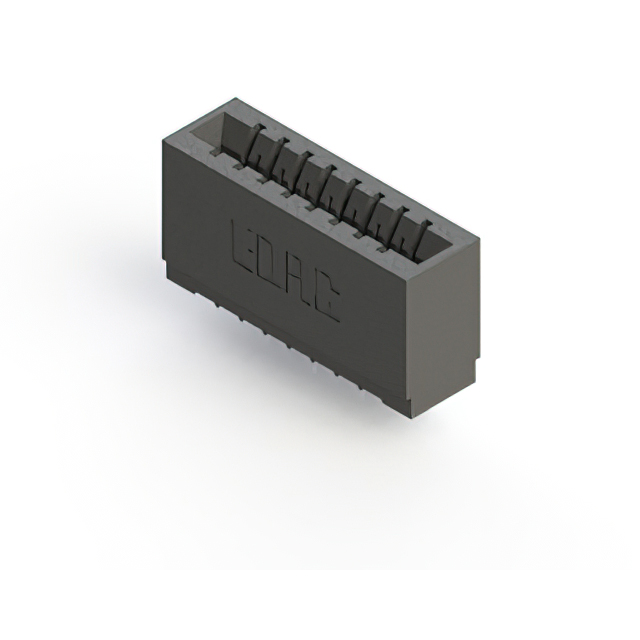

EDAC Inc. 746-008-540-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit Wire Wrap	3.18 mm	0.125 in	8
EDAC Inc. 746-008-527-506	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8

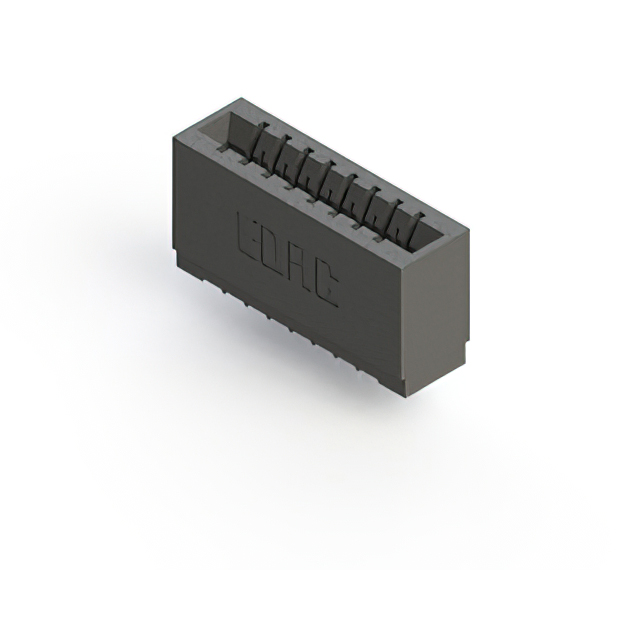

EDAC Inc. 746-008-553-501	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit Wire Wrap	3.18 mm	0.125 in	8
EDAC Inc. 746-008-520-501	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Non Specified - Single Edge	Copper Alloy	Female	8	30 Áin	0.76 Ám	Single	-40 C	105 ░C	Gold	Through Hole	1	Black	Press-Fit	3.18 mm	0.125 in	8
