216401 Series

Manufacturer: Molex

Catalog

MEGA-FIT FEMALE-TO-PIGTAIL OFF-THE-SHELF (OTS) CABLE ASSEMBLY, SINGLE ROW, 600.00MM LENGTH, TIN PLATED, 4 CIRCUITS, BLACK

Part	Shielding	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Number of Positions	Number of Rows	Cable Termination	Length [x]	Length [x]	Length [x]	Length	Color
Molex 2164011043	Unshielded	600 mm	1.97 ft	1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	4	1	Crimp
Molex 2164011022	Unshielded			1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	2	1	Crimp	0.984 '	11.81 "	300 mm
Molex 2164011021	Unshielded	150 mm	0.492 ft	1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	2	1	Crimp				5.91 "

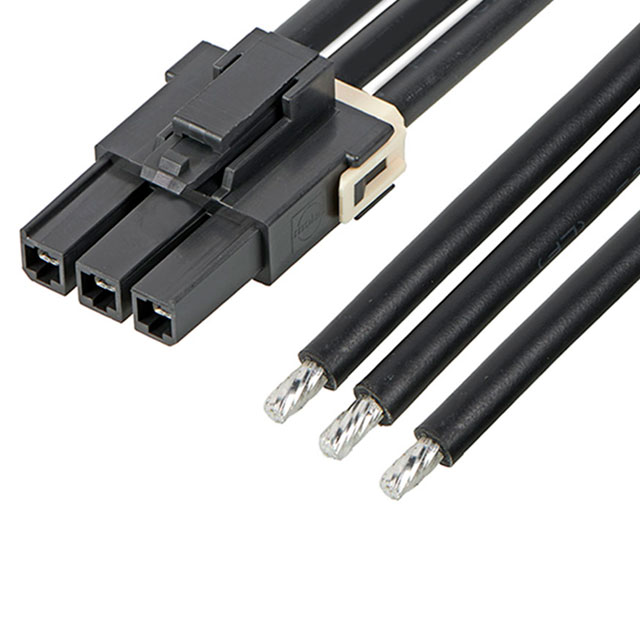

Molex 2164011031	Unshielded	150 mm	0.492 ft				0.224 in	5.7 mm	Socket to Cable	Tin		1	Crimp				5.91 "	Black
Molex 2164011041	Unshielded	150 mm	0.492 ft	1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	4	1	Crimp				5.91 "
Molex 2164011023	Unshielded	600 mm	1.97 ft	1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	2	1	Crimp
Molex 2164011032	Unshielded			1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin		1	Crimp	0.984 '	11.81 "	300 mm
Molex 2164011061	Unshielded	150 mm	0.492 ft	1.02 Ám	40 Áin	Latch Lock	0.224 in	5.7 mm	Socket to Cable	Tin	6	1	Crimp				5.91 "
