16_SMC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

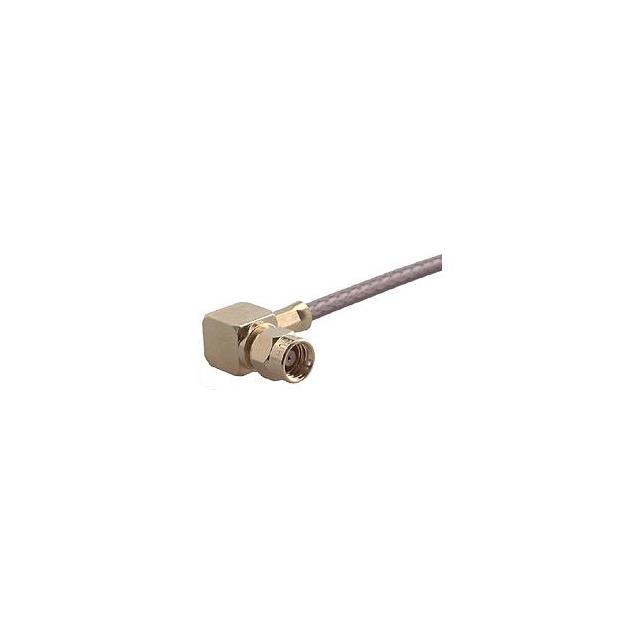

16_SMC-50-1-10/111_NH
| Part | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Contact Termination | Mounting Type | Center Contact Material | Fastening Type | Shield Termination | Connector Style | Housing Color | Connector Type | Frequency - Max [Max] | Number of Ports | Cable Group | Cable Group | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) Right Angle | Beryllium Copper | Threaded | Crimp | SMC | Gold | Plug Male Pin | 10 GHz | 1 | 196 | RG-178 | 50 Ohms |
Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) Right Angle | Beryllium Copper | Threaded | Crimp | SMC | Gold | Plug Male Pin | 10 GHz | 1 | 196 | RG-178 | 50 Ohms |
 Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) Right Angle | Beryllium Copper | Threaded | Crimp | SMC | Gold | Plug Male Pin | 10 GHz | 1 | 188 316 RG-174 | 50 Ohms | |
Huber+Suhner, Inc. | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) Right Angle | Beryllium Copper | Threaded | Crimp | SMC | Gold | Plug Male Pin | 10 GHz | 1 | RD-316 | 50 Ohms |
