AKA55 Series
Manufacturer: TE Intercontec
Beta
⌘K

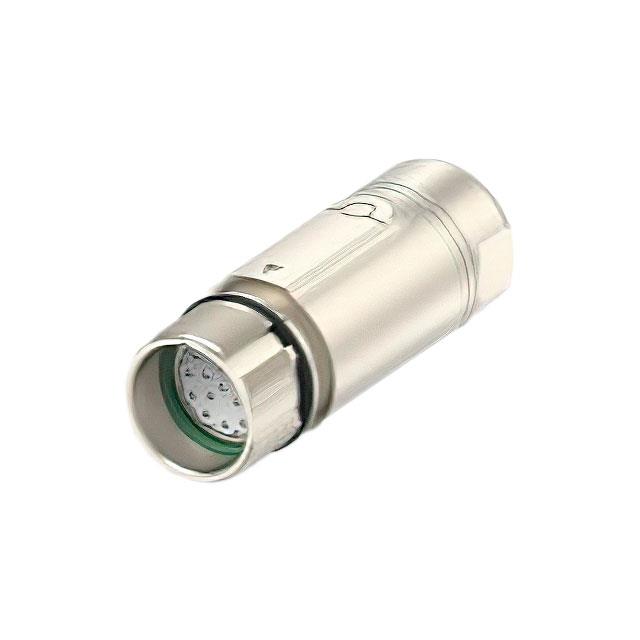

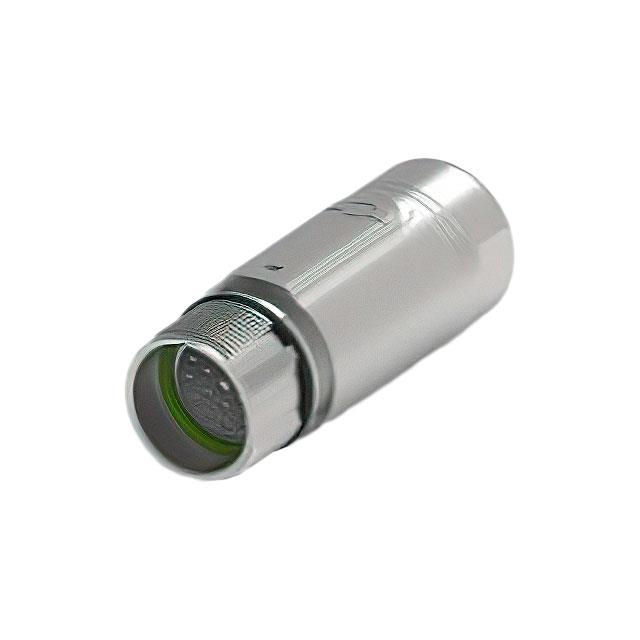

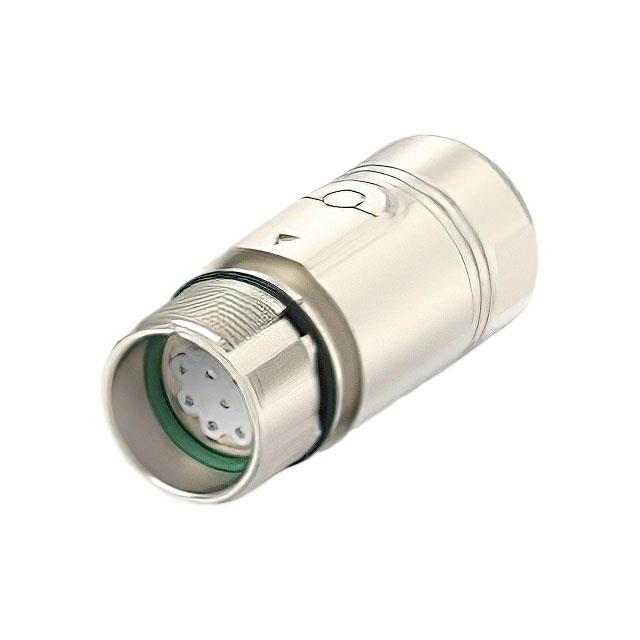

CONN RCPT HSG MALE 19POS INLINE
| Part | Ingress Protection | Shell Material | Material Flammability Rating | Shell Finish | Orientation | Connector Type | Includes | Fastening Type | Mounting Type | Shell Size - Insert | Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Contact Shape | Number of Positions | Shielding | Features | Insert Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | IP66 IP67 | Zinc Die Cast | UL94 V-0 | Nickel | Keyed | Receptacle Housing | 1 Backshell 1 Cable Clamp 1 Connector | Push-Twist | Free Hanging (In-Line) | M23-19 | For Male Pins | -20 ░C | 130 °C | Silver | Circular | 19 | Shielded | Backshell Cable Clamp | Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Intercontec | IP66 IP67 | Zinc Die Cast | UL94 V-0 | Nickel | Keyed | Receptacle Housing | 1 Backshell 1 Cable Clamp 1 Connector | Push-Twist | Free Hanging (In-Line) | M23-19 | For Male Pins | -20 ░C | 130 °C | Silver | Circular | 19 | Shielded | Backshell Cable Clamp | Polybutylene Terephthalate (PBT) | Contacts Not Included |
 TE Intercontec | IP66 IP67 | Zinc Die Cast | UL94 V-0 | Nickel | Keyed | Receptacle Housing | 1 Backshell 1 Cable Clamp 1 Connector | Push-Twist | Free Hanging (In-Line) | M23-19 | For Male Pins | -20 ░C | 130 °C | Silver | Circular | 19 | Shielded | Backshell Cable Clamp | Polybutylene Terephthalate (PBT) | Contacts Not Included |
