RC6-8 Series
Manufacturer: Marlow Industries, Inc.
Beta
⌘K

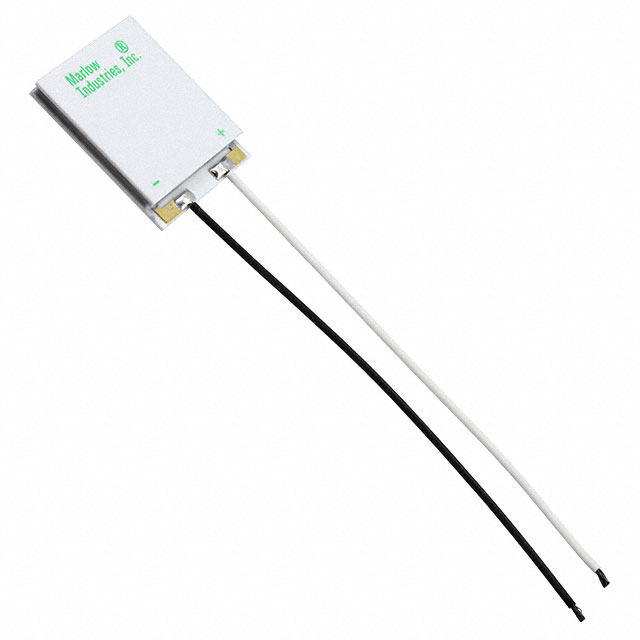

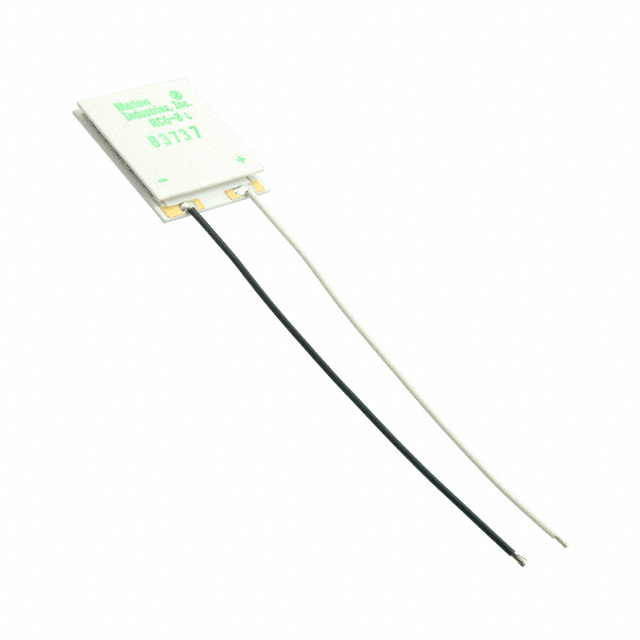

TEM 29.97X29.97X3.53MM
| Part | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature | Resistance | Delta Tmax @ Th | Height [z] | Current - Max [Max] | Type | Voltage - Max [Max] | Features | Qmax @ Th | Number of Stages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Marlow Industries, Inc. | 34.04 mm | 29.97 mm | 130 °C | 900 mOhms | 65 °C | 3.53 mm | 7.4 A | TEC (Thermoelectric Cooler) | 8.2 V | Lapped Lead Wires | 39 W | 1 |
 Marlow Industries, Inc. | 34.04 mm | 29.97 mm | 130 °C | 900 mOhms | 65 °C | 3.63 mm | 7.4 A | TEC (Thermoelectric Cooler) | 8.2 V | Lead Wires Sealed | 39 W | 1 |
 Marlow Industries, Inc. | 34.04 mm | 29.97 mm | 130 °C | 900 mOhms | 65 °C | 3.63 mm | 7.4 A | TEC (Thermoelectric Cooler) | 8.2 V | Buss Wire Lead Wires | 39 W | 1 |
Marlow Industries, Inc. | 34.04 mm | 29.97 mm | 130 °C | 900 mOhms | 65 °C | 3.63 mm | 7.4 A | TEC (Thermoelectric Cooler) | 8.2 V | Lead Wires | 39 W | 1 |
 Marlow Industries, Inc. | 34.04 mm | 29.97 mm | 130 °C | 900 mOhms | 65 °C | 3.53 mm | 7.4 A | TEC (Thermoelectric Cooler) | 8.2 V | Lapped Lead Wires Sealed | 39 W | 1 |
