T38232 Series

Catalog

CONN BARRIER STRP 19CIRC 0.375"

Part	Mounting Type	Operating Temperature	Terminal Screw Finish	Material Flammability Rating	Material - Insulation	Terminal Screw Material	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Barrier Type	Number of Circuits	Features	Current Rating (Amps)	Terminal Block Type	Bottom Termination [diameter]	Bottom Termination	Voltage Rating	Top Termination	Number of Wire Entries	Pitch	Pitch
Curtis Industries T38232-19-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	19	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	19	9.53 mm	0.375 in
Curtis Industries T38232-15-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	15	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	15	9.53 mm	0.375 in
Curtis Industries T38232-16-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	16	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	16	9.53 mm	0.375 in
Curtis Industries T38232-08-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	8	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	8	9.53 mm	0.375 in
Curtis Industries T38232-05-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	5	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	5	9.53 mm	0.375 in
Curtis Industries T38232-26-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	26	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	26	9.53 mm	0.375 in
Curtis Industries T38232-14-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	14	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	14	9.53 mm	0.375 in

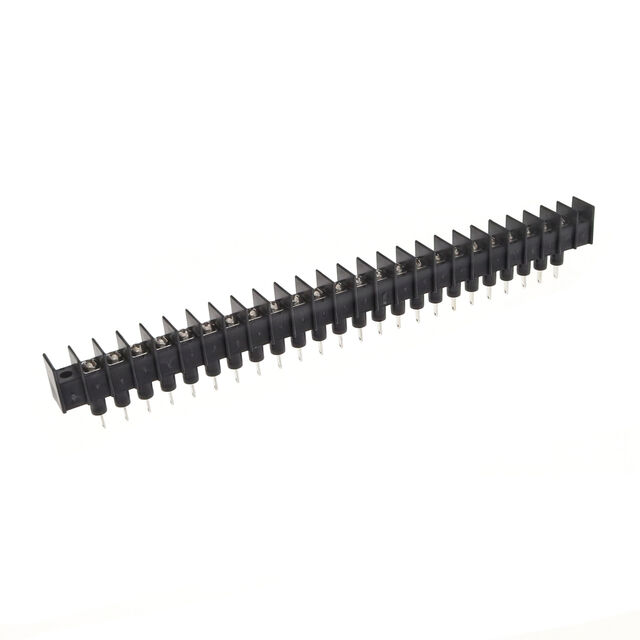

Curtis Industries T38232-24-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	24	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws		9.53 mm	0.375 in
Curtis Industries T38232-06-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	6	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	6	9.53 mm	0.375 in
Curtis Industries T38232-12-0	Chassis Panel	105 C	Nickel	UL94 V-0	Polypropylene (PP)	Brass	1	22 AWG	12 AWG	2 Wall (Dual)	12	Flange	20 A	Barrier Block	0.11 in	Quick Connect	300 VDC	Screws	12	9.53 mm	0.375 in
