160433 Series

Catalog

CONN QC RCPT 15-20AWG 0.187

Part	Contact Material	Termination	Terminal Type	Length - Overall	Length - Overall [x]	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation	Tab Length	Tab Length	Gender	Contact Finish
TE Connectivity Raychem Cable Protection 5-160433-1	Brass	Crimp	Standard	15 mm	0.591 in	4.75 mm	0.187 in	0.02 "	0.51 mm	15 AWG	20 AWG	Free Hanging (In-Line)	0.091 in	3.3 mm	2.31 mm	0.13 "	Non-Insulated	0.248 in	6.3 mm	Female

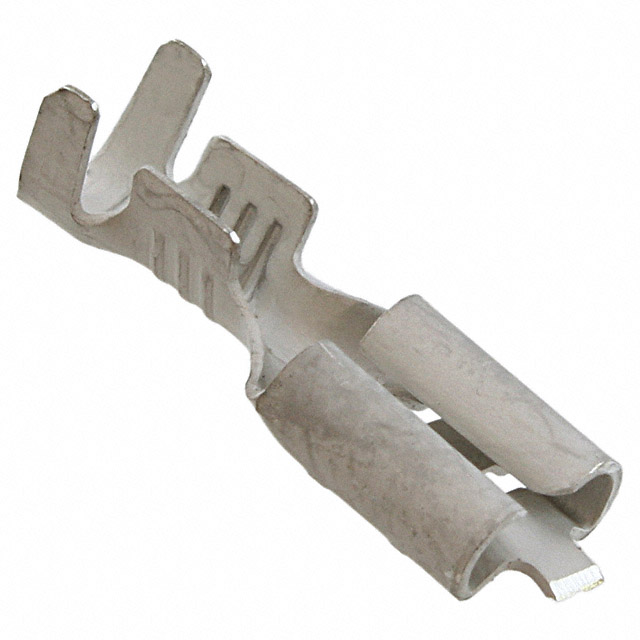

TE Connectivity Raychem Cable Protection 5-160433-6	Brass	Crimp	Standard	15 mm	0.591 in	4.75 mm	0.187 in	0.02 "	0.51 mm	15 AWG	20 AWG	Free Hanging (In-Line)	0.091 in	3.3 mm	2.31 mm	0.13 "	Non-Insulated	0.248 in	6.3 mm	Female	Tin
TE Connectivity Raychem Cable Protection 7-160433-8	Brass	Crimp	Standard	15 mm	0.591 in	4.75 mm	0.187 in	0.02 "	0.51 mm	15 AWG	20 AWG	Free Hanging (In-Line)	0.091 in	3.3 mm	2.31 mm	0.13 "	Non-Insulated	0.248 in	6.3 mm	Female	Tin
