FTM-133 Series

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings 1.00 mm Surface Mount Micro Low Profile Terminal Strip

...

Part	Insulation Material	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Contact Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Features
Samtec Inc. FTM-125-03-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact

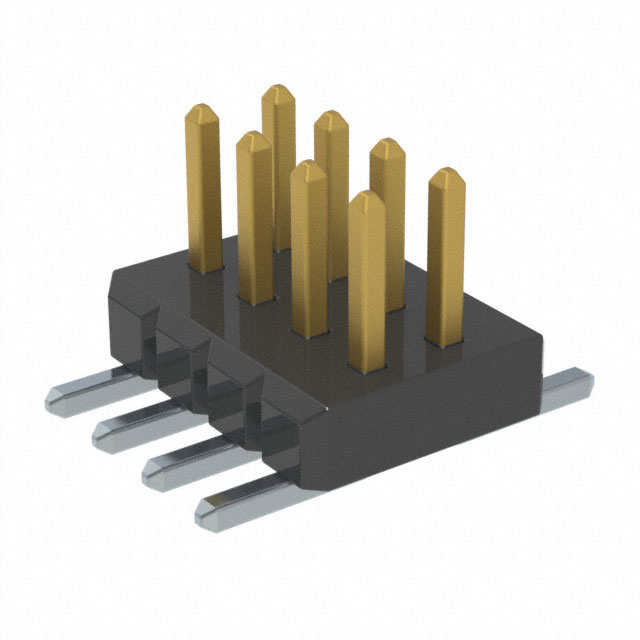

Samtec Inc. FTM-104-02-L-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in

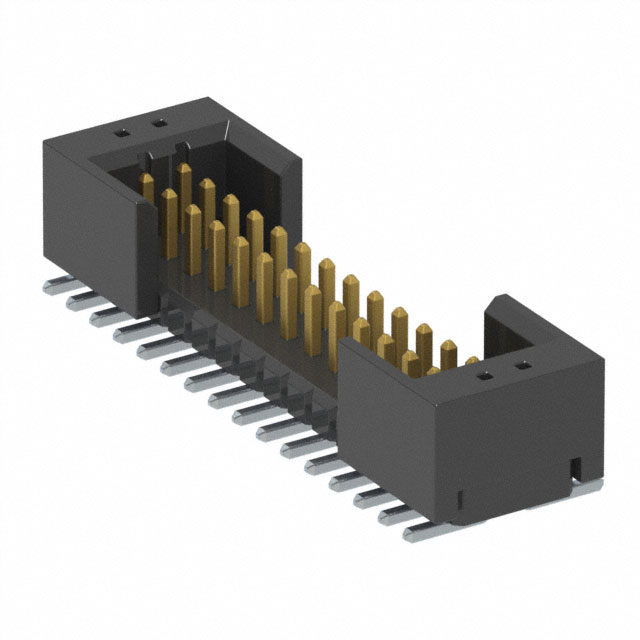

Samtec Inc. FTM-112-03-L-DV-S-P-TR	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds Pick and Place
Samtec Inc. FTM-112-03-F-DV-S	Liquid Crystal Polymer (LCP)	Black	24	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact			End Shrouds
Samtec Inc. FTM-115-02-L-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place

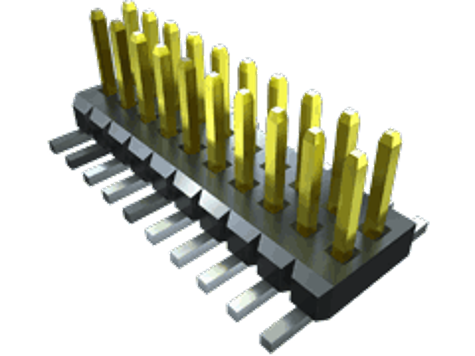

Samtec Inc. FTM-133-03-F-DV	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	3 µin	0.076 µm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
Samtec Inc. FTM-125-02-L-DV-TR	Liquid Crystal Polymer (LCP)	Black	50	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in
Samtec Inc. FTM-133-02-L-DV-S	Liquid Crystal Polymer (LCP)	Black	66	0.039 "	1 mm	10 çin	0.25 çm	Phosphor Bronze	Solder	All	Tin	Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	End Shrouds

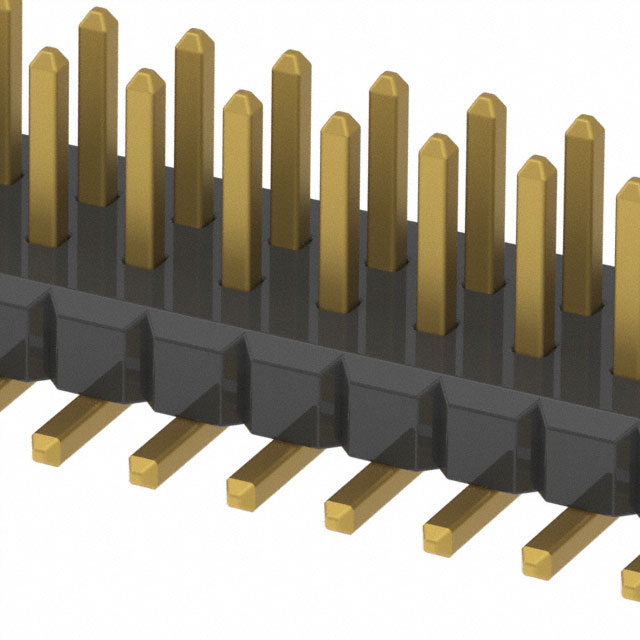

Samtec Inc. FTM-115-02-G-DV-P	Liquid Crystal Polymer (LCP)	Black	30	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin			Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact	1.9 mm	0.075 in	Pick and Place

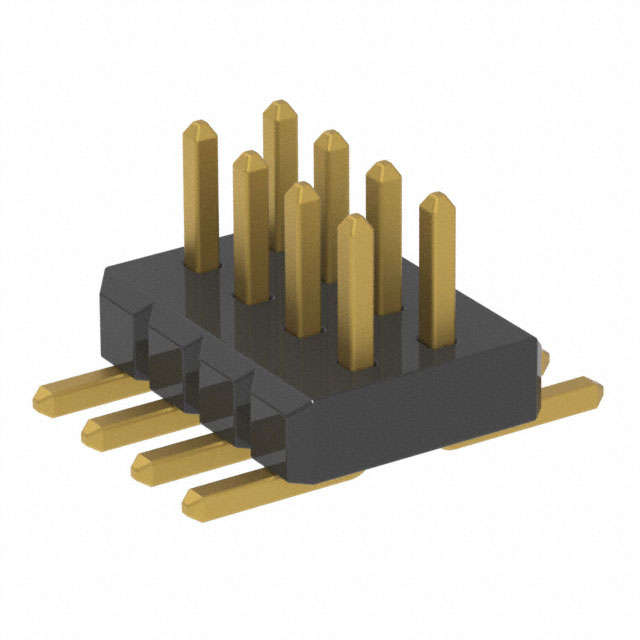

Samtec Inc. FTM-104-03-G-DV	Liquid Crystal Polymer (LCP)	Black	8	0.039 "	1 mm			Phosphor Bronze	Solder	All		Push-Pull	0.038 in	0.97 mm	Gold	Unshrouded	Male Pin	0.065 in	1.65 mm	Surface Mount	0.039 in	1 mm	Cuttable Header	2	Square	-55 °C	125 °C	2.8 A per Contact
