DC3332203 Series
Manufacturer: SAB North America
Beta
⌘K

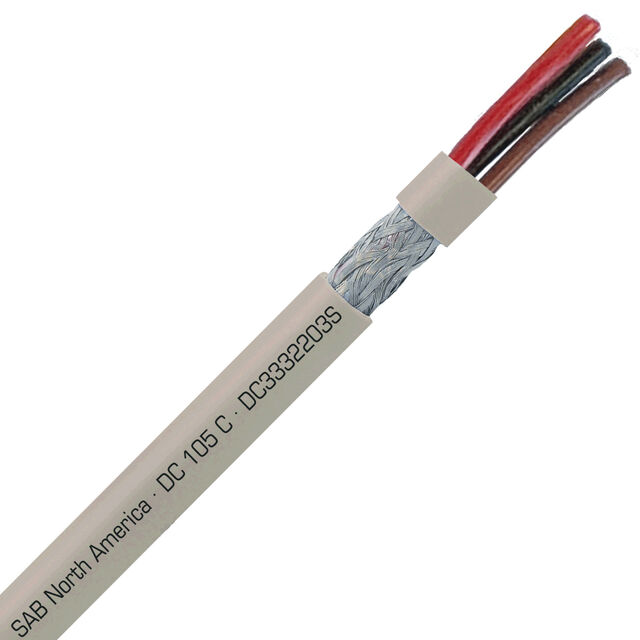

CABLE 3COND 22AWG GRY SHLD 1=1FT
| Part | Features | Shield Material | Conductor Insulation | Jacket Color | Cable Type | Voltage | Conductor Material | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SAB North America | Drain Wire Flame Retardant Oil Resistant | Copper Tinned | Poly-Vinyl Chloride (PVC) Poly-Vinyl Chloride (PVC) Semi-Rigid | Gray Tan | Multi-Conductor | 300 VDC | Copper Tinned | Poly-Vinyl Chloride (PVC) | Braid Foil | 5.33 mm | 0.21 in | 22 AWG | UL Style CMG UL Style PLTC | 30 AWG | 7 | 3 | 105 ░C | -25 °C | Enter Number of Feet in Order Quantity |
