MTPR-88 Series
Manufacturer: Adam Tech
Beta
⌘K

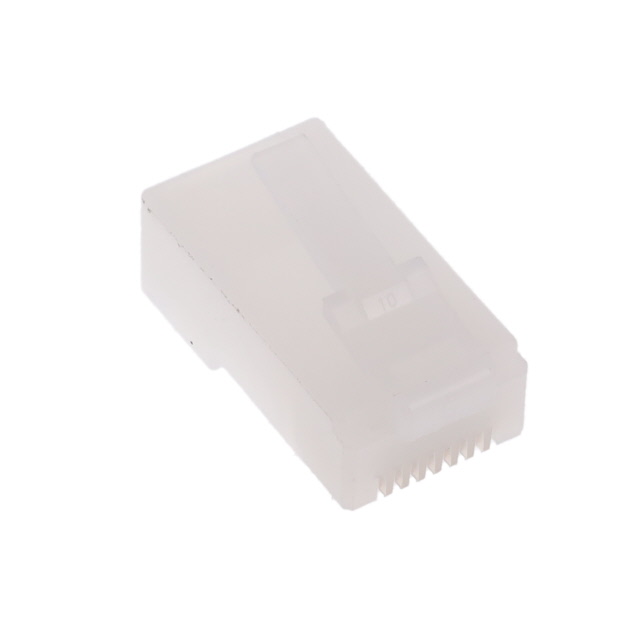

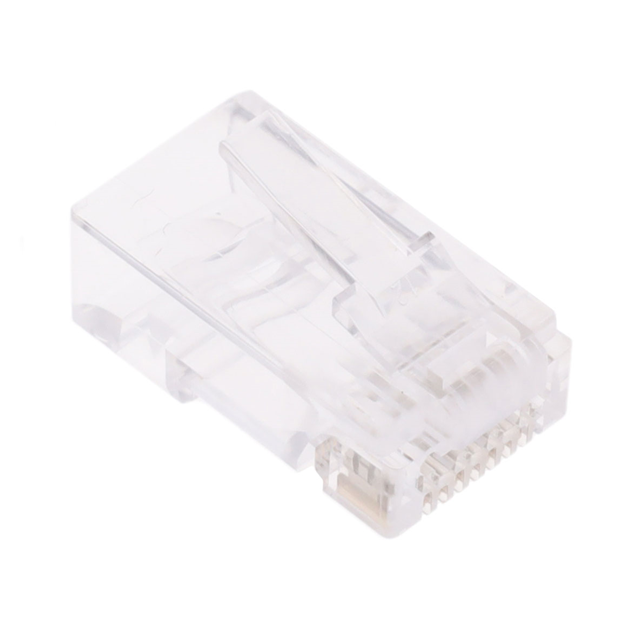

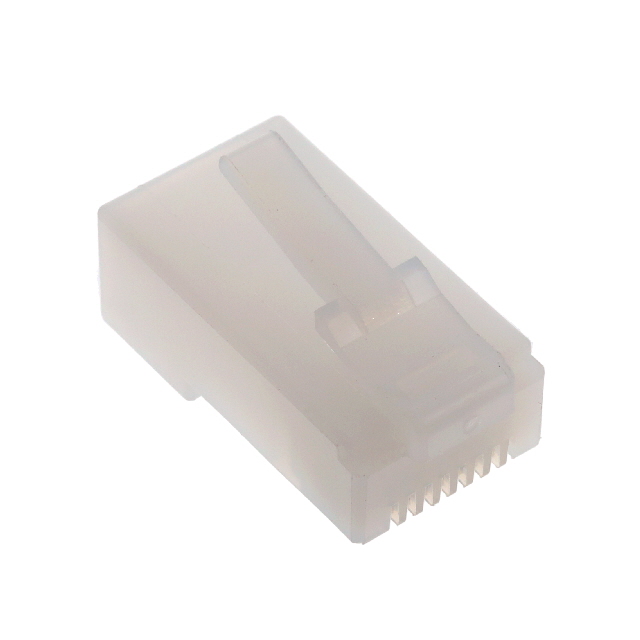

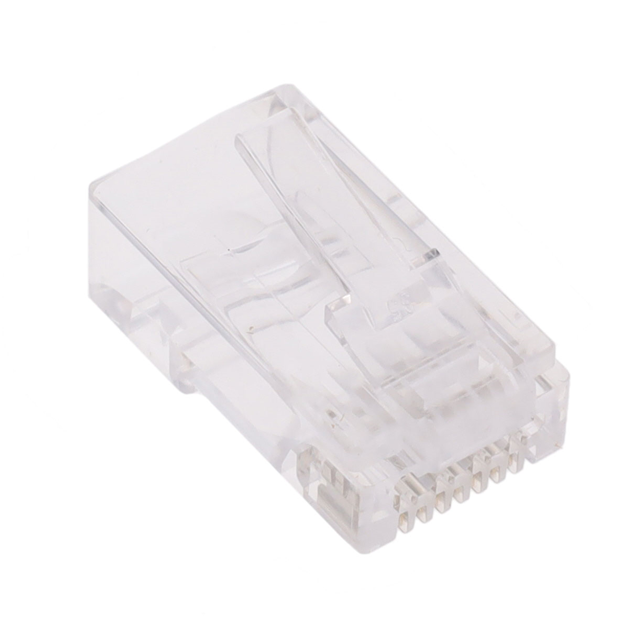

RJ-45 PL 8 POS CRIMP ST CABLE MOUNT
| Part | Contact Material | Housing Material | Contact Finish | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] | Voltage Rating | Contact Finish Thickness | Ratings | Length | Length | Number of Positions/Contacts | Color | Connector Type | Termination | Shielding | Cable Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Copper Alloy | Polycarbonate (PC) | Gold | 1.5 A | 21 AWG | 23 AWG | 150 VAC | Flash | Cat6 | 24.44 mm | 0.962 in | 8p8c (RJ45 Ethernet) | Clear | Plug | IDC | Unshielded | Flat Oval Cable Solid Wires | ||
 Adam Tech | Copper Alloy | Gold | 24.44 mm | 0.962 in | 8p8c (RJ45 Ethernet) | White | Plug | IDC | Unshielded | Flat Oval Cable Not Specified | 30 Áin | 0.76 Ám | |||||||
 Adam Tech | Copper Alloy | Polycarbonate (PC) | Gold | 1.5 A | 21 AWG | 23 AWG | 150 VAC | Cat6 | 24.44 mm | 0.962 in | 8p8c (RJ45 Ethernet) | Clear | Plug | IDC | Unshielded | Flat Oval Cable Solid Wires | 30 Áin | 0.76 Ám | |
 Adam Tech | Copper Alloy | Gold | Flash | 24.44 mm | 0.962 in | 8p8c (RJ45 Ethernet) | White | Plug | IDC | Unshielded | Flat Oval Cable Not Specified |
