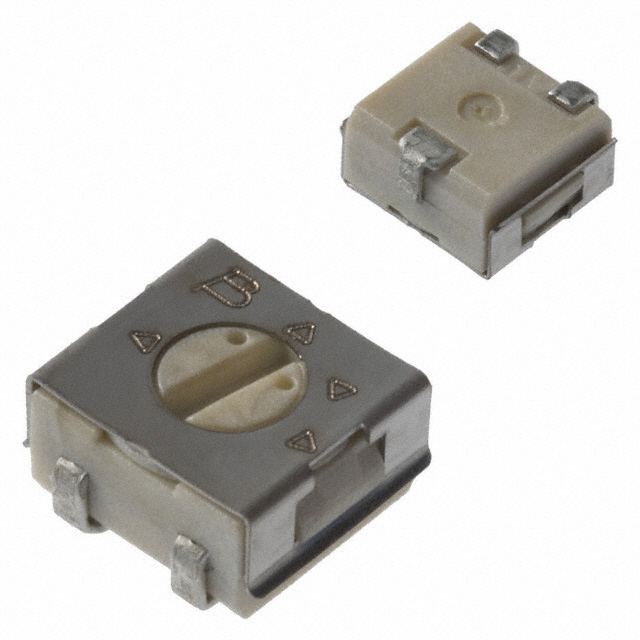

3314J Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER - SMD 4MM SQ ST CERMET /TAPE & REEL - 7" REEL
| Part | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Termination Style | Resistance | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 25 kOhms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 25 kOhms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 2 kOhms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 100 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 50000 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 250000 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 1000 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 1 MOhms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
 Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 10 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
Bourns Inc. | 0.25 W | 0.25 W | 0.177 " | 0.177 in | Face | 4.5 mm | 4.5 mm | Surface Mount | J Lead | 10000 Ohms | 20 % | 100 ppm/°C | 1 | Top Adjustment | Cermet |
