803-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 46P 0.1 GOLD PCB R/A

...

Part	Contact Material	Insulation Material	Contact Shape	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows [custom]	Fastening Type	Contact Finish - Post	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Type	Number of Positions	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Preci-Dip 803-83-046-20-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	0.2 in	5.08 mm	Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Right Angle Through Hole	0.126 "	3.2 mm	3 A	Female Socket	46	All	Socket	-55 C	125 °C

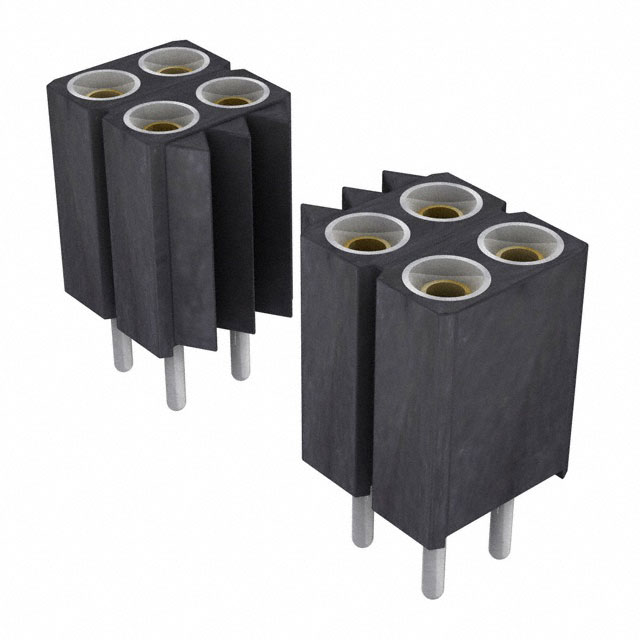

Preci-Dip 803-83-014-10-132101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	14	All	Socket	-55 C	125 °C	0.276 in	7 mm	0.118 in	3 mm

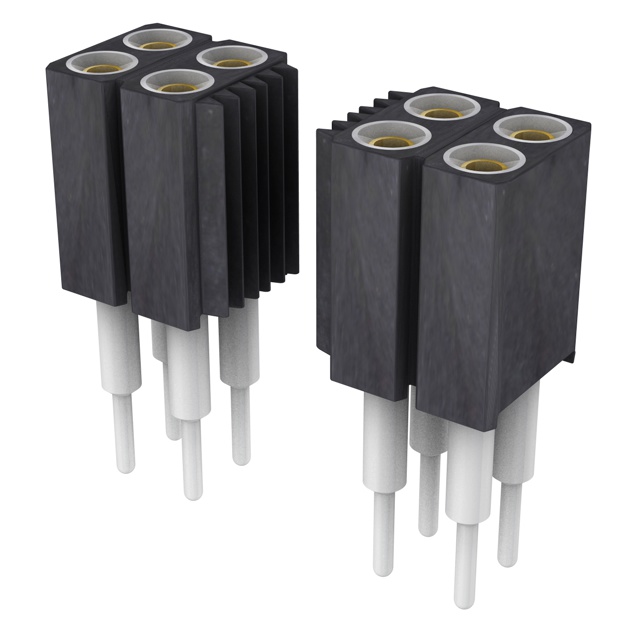

Preci-Dip 803-83-010-10-269101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	10	All	Socket	-55 C	125 °C	0.435 "	11.05 mm	0.116 in	2.95 mm
Preci-Dip 803-83-014-10-269101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	14	All	Socket	-55 C	125 °C	0.435 "	11.05 mm	0.116 in	2.95 mm
Preci-Dip 803-83-070-10-132101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	70	All	Socket	-55 C	125 °C	0.276 in	7 mm	0.118 in	3 mm
Preci-Dip 803-83-008-53-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Wire Wrap	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	8	All	Socket	-55 C	125 °C	0.276 in	7 mm	0.503 in	12.78 mm
Preci-Dip 803-83-032-10-132101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket		All	Socket	-55 C	125 °C	0.276 in	7 mm	0.118 in	3 mm
Preci-Dip 803-83-048-53-001101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Wire Wrap	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	48	All	Socket	-55 C	125 °C	0.276 in	7 mm	0.503 in	12.78 mm
Preci-Dip 803-83-056-10-012101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	56	All	Socket	-55 C	125 °C	0.165 in	4.2 mm	0.125 in	3.18 mm

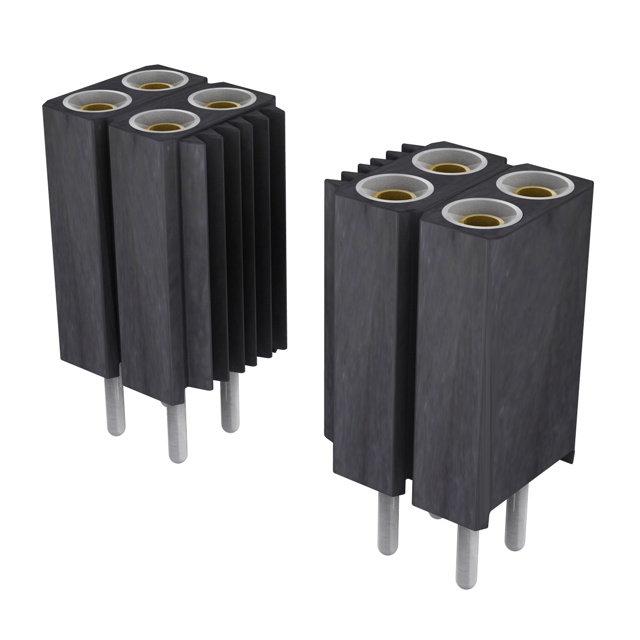

Preci-Dip 803-83-046-10-003101	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular			Solder	Gold	0.1 in	2.54 mm	29.5 µin	0.75 µm	UL94 V-0	0.1 "	2.54 mm	Black	2	Push-Pull	Tin	Through Hole			3 A	Female Socket	46	All	Socket	-55 C	125 °C	0.312 in	7.92 mm	0.121 in	3.08 mm
