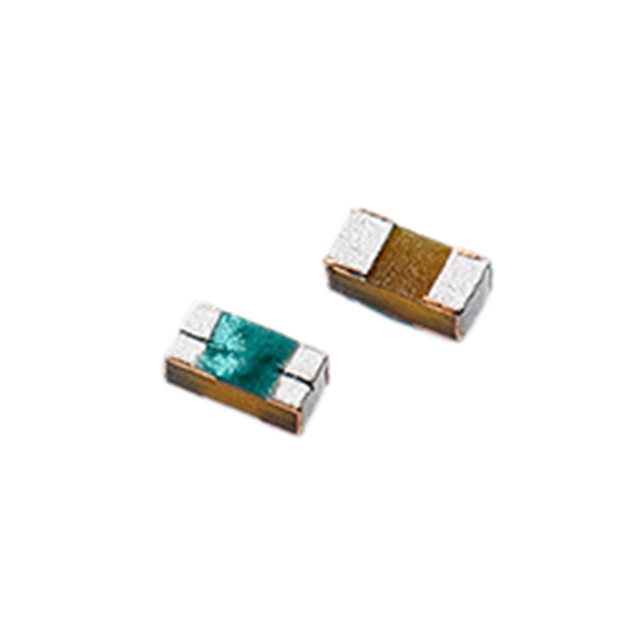

PGB2010201KR-24NR Series

PULSEGUARD 0201 Pb-FREE ESD SUPPRESSOR

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PULSEGUARD 0201 Pb-FREE ESD SUPPRESSOR

Part	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Capacitance @ Frequency	Bidirectional Channels [custom]	Mounting Type	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ)
Littelfuse/Commercial Vehicle Products PGB2010201KR-06NR	20 V	HDMI USB	0.05 pF	1	Surface Mount	0603 Metric	0201	85 °C	-40 °C	Zener	0201
Littelfuse/Commercial Vehicle Products PGB2010201KR-HM		HDMI USB		1	Surface Mount	0603 Metric	0201	125 °C	-65 ░C	Zener	0201	55 V
Littelfuse/Commercial Vehicle Products PGB2010201KR-24NR	20 V	HDMI USB	0.05 pF	1	Surface Mount	0603 Metric	0201	85 °C	-40 °C	Zener	0201
Littelfuse/Commercial Vehicle Products PGB2010201KR-12NR	20 V	HDMI USB	0.05 pF	1	Surface Mount	0603 Metric	0201	85 °C	-40 °C	Zener	0201
Littelfuse/Commercial Vehicle Products PGB2010201KR		HDMI USB		1	Surface Mount	0603 Metric	0201	125 °C	-65 ░C	Zener	0201	55 V	12 V

Catalog

PULSEGUARD 0201 Pb-FREE ESD SUPPRESSOR

Key Features

• Lead-free, halogen-free, and RoHS compliant

• Ultra-low capacitance

• Low leakage current

• Fast response time

• One line of protection

• Bidirectional

• Withstands multiple ESD strikes

• Compatible with pick-and-place processes

Description

PULSE-GUARD® ESD Suppressors help protect sensitive electronic equipment against electrostatic discharge (ESD). \They use polymer composite materials to suppress fast- rising ESD transients (as specified in IEC 61000-4-2), while adding virtually no capacitance to the circuit. They supplement the on-chip protection of integrated circuitry and are best suited for low-voltage, high-speed applications where low capacitance is important to ensure minimal interference of data signal integrity. The new and ultra-small surface mount PGB2 0201 products offer a RoHS Compliant, Halogen Free, and 100% Lead Free circuit protection solution.
