TRH50A180 Series

Catalog

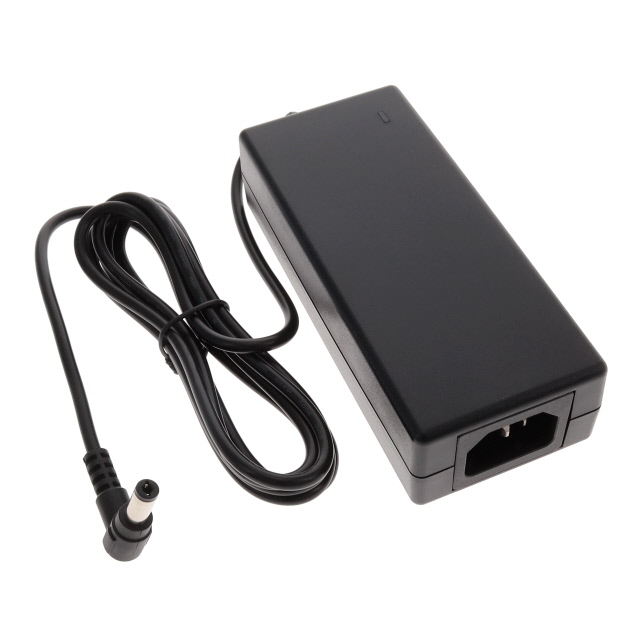

AC/DC DESKTOP ADAPTER 18V 50W

Part	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Output Connector [diameter]	Output Connector [z]	Efficiency	Region Utilized	Voltage - Output	Input Connector	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Cord Length	Cord Length	Approval Agency	Standard Number	Power (Watts)	Current - Output (Max) [Max]	Polarization	Form
Cincon Electronics Co. LTD TRH50A180-01E03 VI	150 mW	264 VAC	90 VAC	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	CoC Tier 2 Level VI	International	18 V	IEC 320-C14	Cord (Sold Separately)	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	-20 ░C	70 °C	ITE (Commercial)	70.9 "	1.8 m	CE cULus FCC GS PSE TUV	60950-1 62368-1	50 W	2.8 A	Positive Center	Desktop (Class I)
