74LVC1G02 Series

Catalog

IC GATE NOR

Part	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Current - Output High, Low [y]	Current - Output High, Low [x]	Number of Circuits	Max Propagation Delay @ V, Max CL	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Current - Quiescent (Max) [Max]	Mounting Type	Logic Type
Freescale Semiconductor - NXP 74LVC1G02GN,132
Freescale Semiconductor - NXP 74LVC1G02GF,132	1.7 V	2 V	32 mA	32 mA	1	4 ns	6-XSON SOT891 (1x1)	5.5 V	1.65 V	125 °C	-40 °C	2	6-XFDFN	0.8 V	0.7 V	4 µA	Surface Mount	NOR Gate

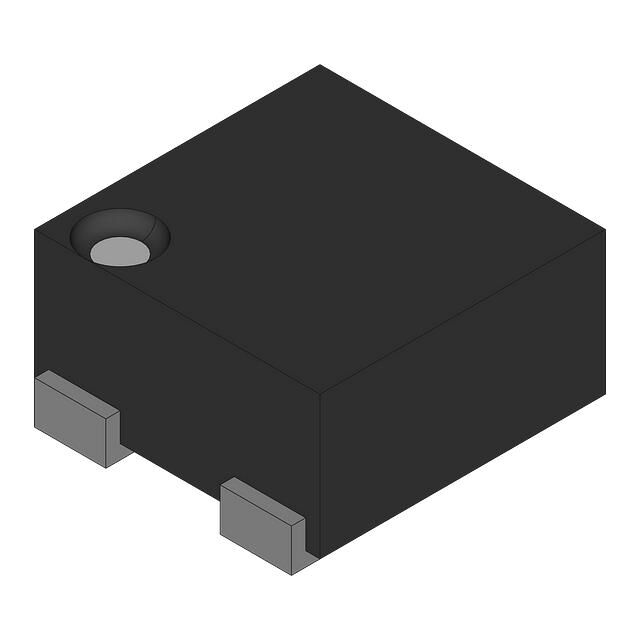

Freescale Semiconductor - NXP 74LVC1G02GX,125	1.7 V	2 V	32 mA	32 mA	1	4 ns	5-X2SON (0.80x0.80)	5.5 V	1.65 V	125 °C	-40 °C	2	4-XFDFN Exposed Pad	0.8 V	0.7 V	4 µA	Surface Mount	NOR Gate
