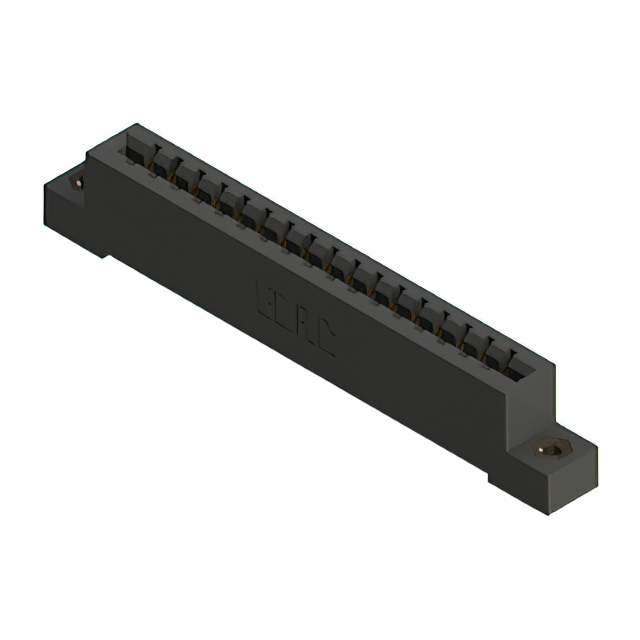

887-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 17POS 0.156
| Part | Termination Rows | Material - Insulation | Gender | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Read Out | Color | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Termination | Contact Type | Contact Material | Mounting Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Wire Wrap | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Right Angle Through Hole | Gold | 125 °C | -40 C | 1 | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder Eyelet(s) | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Single | Black | 17 | 3.96 mm | 0.156 in | Solder | Cantilever | Copper Alloy | Through Hole | Gold | 125 °C | -40 C | 1 |
