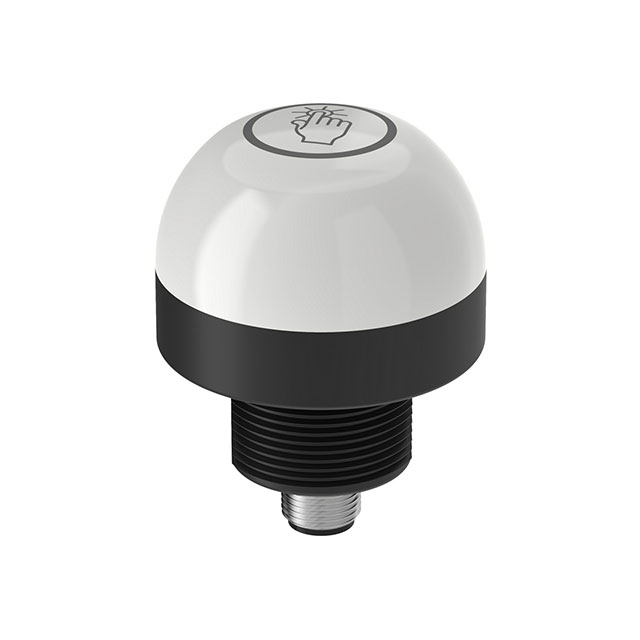

K50PTV Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
TOUCH BUTTON, NPN/PNP, NO, MULTICOLOR
| Part | Mounting Type | Termination Style | Illumination Type, Color | Actuator Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Switch Function | Response Time | Panel Cutout Dimensions [diameter] | Approval Agency | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Panel Mount Front | Connector (M12) | Blue Green LED Red | Button Domed Round | SPST-NO | -40 C | 50 °C | 12 VDC | 30 VDC | Off-Mom | 300 ms | 30 mm | CE cULus | Tactile Feedback | IP67/IP69K |
 BANNER ENGINEERING | Panel Mount Front | Connector (M12) | Green LED Red Yellow | Button Domed Round | SPST-NO | -40 C | 50 °C | 12 VDC | 30 VDC | Off-Mom | 300 ms | 30 mm | CE cULus | Tactile Feedback | IP67/IP69K |
