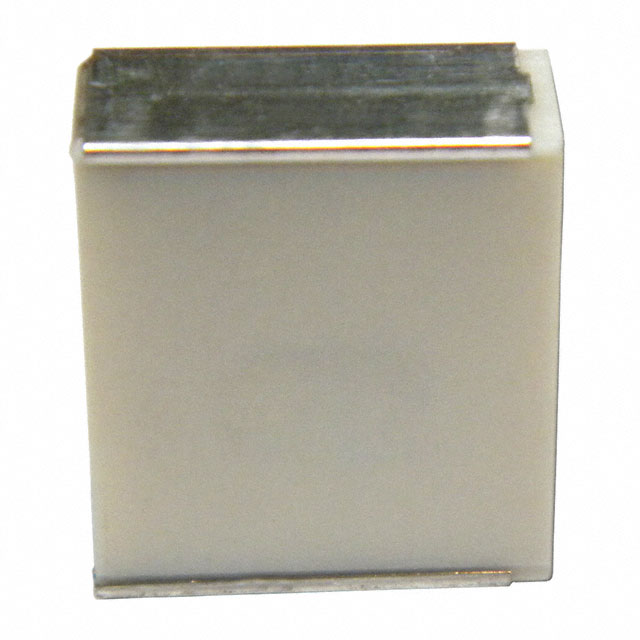

F161WP Series

Manufacturer: KEMET

Catalog

CAP FILM 0.47UF 10% 63VDC SMD

Part	Dielectric Material	Applications	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Capacitance	Voltage Rating - AC	Mounting Type	Termination	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET F161WP474K063V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	AEC-Q200	-55 C	125 °C	Nonstandard	0.402 in	9.1 mm	10.2 mm	0.358 in	63 VDC	0.47 µF	40 V	Surface Mount	Solder Pads	10 %	5.7 mm	0.224 in
KEMET F161WP334K100V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	AEC-Q200	-55 C	125 °C	Nonstandard SMD	0.402 in	9.1 mm	10.2 mm	0.358 in	100 V	0.33 µF	63 V	Surface Mount	Solder Pads	10 %	5.7 mm	0.224 in
KEMET F161WP474K100V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	AEC-Q200	-55 C	125 °C	Nonstandard	0.402 in	9.1 mm	10.2 mm	0.358 in	100 V	0.47 µF	63 V	Surface Mount	Solder Pads	10 %	5.7 mm	0.224 in
KEMET F161WP474K050V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	AEC-Q200	-55 C	125 °C	Nonstandard	0.402 in	9.1 mm	10.2 mm	0.358 in	50 VDC	0.47 µF	30 V	Surface Mount	Solder Pads	10 %	5.7 mm	0.224 in
KEMET F161WP473K250V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Automotive	AEC-Q200	-55 C	125 °C	Nonstandard	0.402 in	9.1 mm	10.2 mm	0.358 in	250 V		160 V	Surface Mount	Solder Pads	10 %	5.7 mm	0.224 in
