3115-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

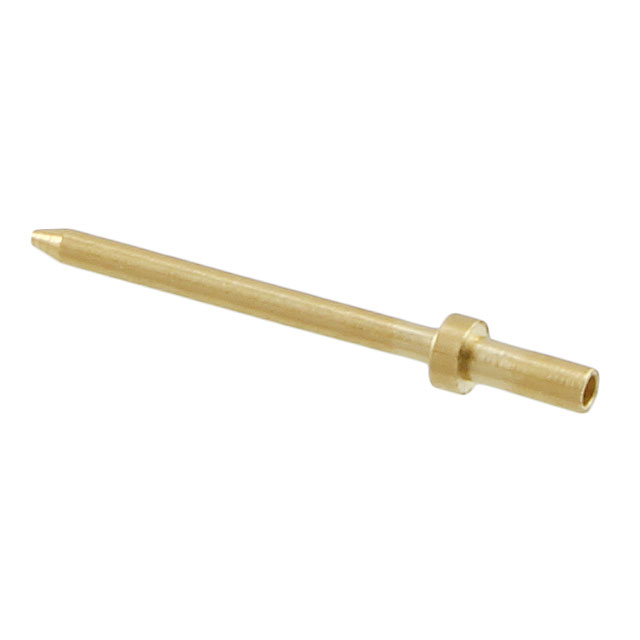

CONN PC PIN CIRC .025DIA GOLD
| Part | Contact Finish | Termination | Board Thickness | Board Thickness | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange | Length - Above Flange | Contact Material | Flange Diameter | Flange Diameter | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Mounting Type | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | Swage | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in | Non-Insulated | 0.64 mm | 0.025 in | 2.08 mm | 0.082 " | 0.3 in | 7.62 mm | Brass Alloy | 0.05 in | 1.27 mm | 20 µin | 0.51 µm | 0.402 " | 10.2 mm | Through Hole | Single End |
 Mill-Max Manufacturing Corp. | Tin | Swage | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in | Non-Insulated | 0.64 mm | 0.025 in | 2.08 mm | 0.082 " | 0.3 in | 7.62 mm | Brass Alloy | 0.05 in | 1.27 mm | 200 Áin | 5.08 Ám | 0.402 " | 10.2 mm | Through Hole | Single End |
Mill-Max Manufacturing Corp. | Gold | Swage | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in | Non-Insulated | 0.64 mm | 0.025 in | 2.08 mm | 0.082 " | 0.3 in | 7.62 mm | Brass Alloy | 0.05 in | 1.27 mm | 50 µin | 1.27 µm | 0.402 " | 10.2 mm | Through Hole | Single End |
 Mill-Max Manufacturing Corp. | Gold | Swage | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in | Non-Insulated | 0.64 mm | 0.025 in | 2.08 mm | 0.082 " | 0.3 in | 7.62 mm | Brass Alloy | 0.05 in | 1.27 mm | 10 Áin | 0.25 Ám | 0.402 " | 10.2 mm | Through Hole | Single End |
Mill-Max Manufacturing Corp. | Tin-Lead | Swage | 1.57 mm | 0.062 " | PC Pin | 0.89 mm | 0.035 in | Non-Insulated | 0.64 mm | 0.025 in | 2.08 mm | 0.082 " | 0.3 in | 7.62 mm | Brass Alloy | 0.05 in | 1.27 mm | 200 Áin | 5.08 Ám | 0.402 " | 10.2 mm | Through Hole | Single End |
