5973211 Series

Manufacturer: DIALIGHT

Catalog

LED ORANGE 2PLCC SMD

Part	Current - Test	Height (Max) [z]	Package / Case	Millicandela Rating	Configuration	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lens Size [diameter]	Lens Style	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lens Transparency	Wavelength - Dominant	Lens Color	Lens Size [y]	Lens Size [x]
DIALIGHT 5973211202F	10 mA	2.11 mm	2-PLCC	6.3 mcd	Standard	2.8 mm	3.2 mm	120 °	2.39 mm	Round with Flat Top	Surface Mount	610 nm	2 V	2-PLCC
DIALIGHT 5973211207NF	10 mA	2.11 mm	2-PLCC	268 mcd		2.8 mm	3.2 mm	120 °	2.39 mm	Round with Flat Top	Surface Mount	610 nm	2 V	2-PLCC	Clear	606 nm	Colorless

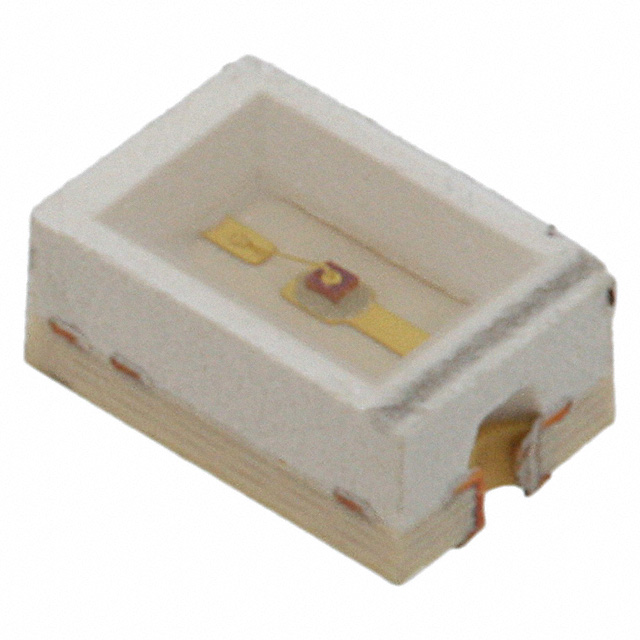

DIALIGHT 5973211507F	20 mA	1.5 mm	1208 (3020 Metric)	10 mcd	Standard	2 mm	3 mm	110 °		Rectangle with Flat Top	Surface Mount	610 nm	2 V	1208	Clear	612 nm	Colorless	1.6 mm	2.3 mm
DIALIGHT 5973211602F	20 mA	1.5 mm	2-PLCC	1.7 mcd	Standard	2.8 mm	3.2 mm				Surface Mount			2-PLCC	Clear
DIALIGHT 5973211502F	20 mA	1.5 mm	1208 (3020 Metric)	10 mcd	Standard	2 mm	3 mm	110 °		Rectangle with Flat Top	Surface Mount	610 nm	2 V	1208	Clear	612 nm	Colorless	1.6 mm	2.3 mm
