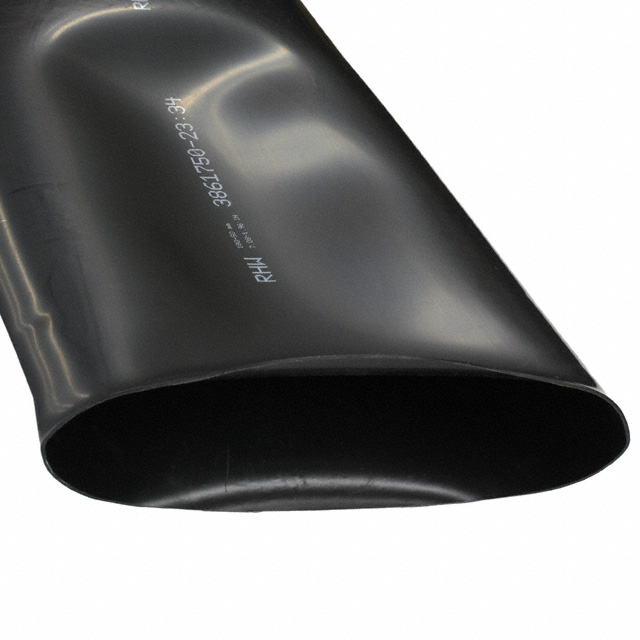

RHW Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

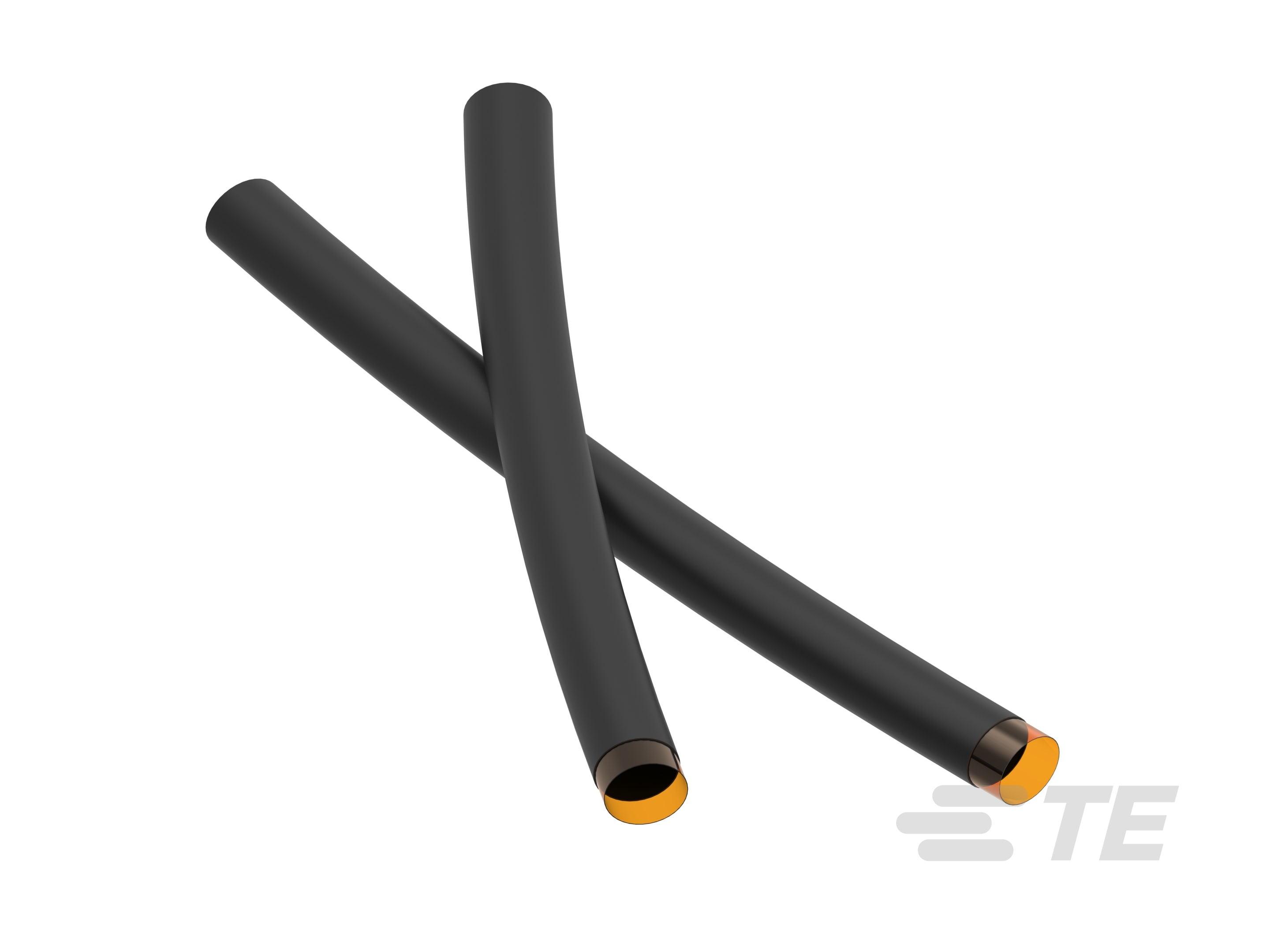

HEATSHRINK RHW POLY 20MMX4' BLK
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material | Type | Recovered Wall Thickness | Recovered Wall Thickness | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Color | Shelf Life | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Shrinkage Ratio | Features | Length [x] | Length [x] | Length [x] | Shrink Temperature | Shrinkage Ratio [Min] | Shrinkage Ratio [Max] | Inner Diameter - Supplied | Inner Diameter - Supplied |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 0.36 mm | 0.014 in | 19.99 mm | 0.787 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 5.99 mm | 0.236 in | 3 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 0.984 ft | 300 mm | 11.81 in | 110 °C | ||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 4.4 mm | 0.173 in | 70 mm | 2.756 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 19.96 mm | 0.786 in | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | 1 | 3.5 | ||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 4.3 mm | 0.169 in | 130 mm | 5.118 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 35 mm | 1.378 in | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | 1 | 3.5 | ||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 4.5 mm | 0.177 in | 48.01 mm | 1.89 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 12 mm | 0.472 " | 4 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | |||||
 TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 3.99 mm | 0.157 in | 34.01 mm | 1.339 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 8 mm | 0.315 in | 4 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | |||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 0.41 mm | 0.016 in | 84.99 mm | 3.346 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 24.99 mm | 0.984 in | 3 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | |||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 3.55 mm | 0.139 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 8 mm | 0.315 in | 3 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 0.984 ft | 300 mm | 11.81 in | 110 °C | 1.299 in | 32.99 mm | ||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 4.3 mm | 0.169 in | 3.543 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 24.99 mm | 0.984 in | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C | 1 | 3.5 | 89.99 mm | ||||
 TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 3.99 mm | 0.157 in | 34.01 mm | 1.339 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 8 mm | 0.315 in | 4 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 110 °C | |||||||
TE Connectivity AMP Connectors | -40 C | 110 °C | Polyolefin (PO) | Tubing Semi Rigid | 2.4 mm | 0.094 in | 16 mm | 0.63 in | Black | 60 Months | 0 °C | 35 °C | 32 °F | 95 °F | 3.99 mm | 0.157 " | 4 to 1 | Adhesive Lined Fluid Resistant UV Resistant | 3.94 ' | 1.2 m | 110 °C |
