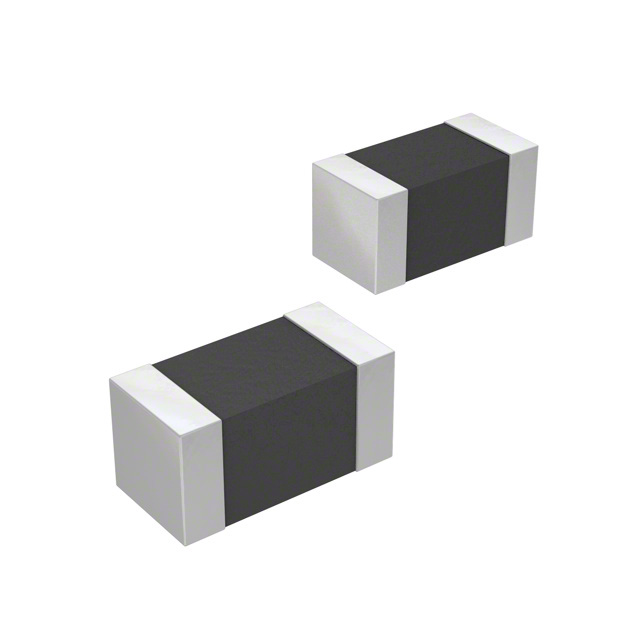

CM160808 Series

Catalog

INDUCTOR CHIP KIT

Part	Mounting Type	Style	Quantity	Quantity	Quantity	Material - Core	Inductance Range [Max]	Inductance Range [Min]	Packages Included	Kit Type	Supplier Device Package	Inductance	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Package / Case	Inductance Frequency - Test	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. CM160808-LAB1	Surface Mount	Wirewound	40 Each	18 Values	720 Pieces	Alumina	100 nH	1.5 nH	0603 (1608 Metric)	Fixed
Bourns Inc. CM160808-82NJL	Surface Mount					Alumina					0603 (1608 Metric)	82 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	12 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm	1.5 Ohm	0.25 A	1608 Metric	0603	100 MHz	1.5 GHz
Bourns Inc. CM160808-1N8DL	Surface Mount					Alumina					0603 (1608 Metric)	1.8 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "		Unshielded	-40 C	100 °C	0.3 nH	0.037 in	0.94 mm	80 mOhm	0.5 A	1608 Metric	0603	100 MHz	6 GHz	8	100 MHz
Bourns Inc. CM160808-15NJL	Surface Mount					Alumina					0603 (1608 Metric)	15 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	10 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm	410 mOhm	350 mA	1608 Metric	0603	100 MHz	2.5 GHz
Bourns Inc. CM160808-4N7JL	Surface Mount					Alumina					0603 (1608 Metric)	4.7 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	9 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm	170 mOhm	0.45 A	1608 Metric	0603	100 MHz	4.8 GHz
Bourns Inc. CM160808-6N8JL	Surface Mount					Alumina					0603 (1608 Metric)	6.8 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	9 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm		430 mA	1608 Metric	0603	100 MHz	3.55 GHz			200 mOhm
Bourns Inc. CM160808-2N2DL	Surface Mount					Alumina					0603 (1608 Metric)		Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "		Unshielded	-40 C	100 °C	0.3 nH	0.037 in	0.94 mm	90 mOhm	0.5 A	1608 Metric	0603	100 MHz	6 GHz	8	100 MHz
Bourns Inc. CM160808-33NJL	Surface Mount					Alumina					0603 (1608 Metric)	33 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	10 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm		0.3 A	1608 Metric	0603	100 MHz	1.8 GHz
Bourns Inc. CM160808-56NJL	Surface Mount					Alumina					0603 (1608 Metric)	56 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "	12 100 MHz	Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm	1.2 Ohm	0.25 A	1608 Metric	0603	100 MHz	1.8 GHz
Bourns Inc. CM160808-39NJL	Surface Mount					Alumina					0603 (1608 Metric)	39 nH	Drum Core Wirewound	0.031 in	1.6 mm	0.8 mm	0.063 "		Unshielded	-40 C	100 °C	5 %	0.037 in	0.94 mm	800 mOhm	0.3 A	1608 Metric	0603	100 MHz	1.8 GHz	11			100 MHz
