MAN69 Series

Catalog

LED 7-SEG DUAL CA RED RHDP .56"

Part	Number of Characters	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Current - Test	Display Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Power Dissipation (Max) [Max]	Color	Voltage - Forward (Vf) (Typ) [Max]	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Package / Case

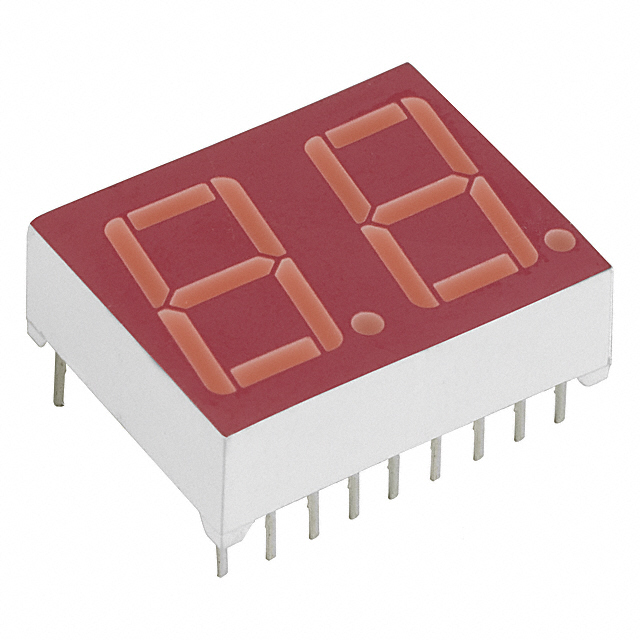

ON Semiconductor MAN6910	2	635 nm	0.56 in	14.22 mm	Common Anode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	15.24 mm	0.6 in	18-DIP	2.2 mcd	1.2 W	Red	2.5 V
ON Semiconductor MAN6911C	2	635 nm	0.56 in	14.22 mm	Common Anode	20 mA	7-Segment	0.315 " 8 mm	0.748 " 19 mm		0.984 in 25 mm			15.24 mm	0.6 in	18-DIP	2.2 mcd	90 mW	Red		2 V
ON Semiconductor MAN6941C	2	635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment	0.315 " 8 mm	0.748 " 19 mm		0.984 in 25 mm			15.24 mm	0.6 in	18-DIP	2.2 mcd	90 mW	Red		2 V
ON Semiconductor MAN6980E		635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.488 in	12.4 mm	19.05 mm		15.24 mm	10-DIP	2.2 mcd	100 mW	Red		2 V	1	0.6 in
ON Semiconductor MAN6940E	2	635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.984 in	25 mm	19.05 mm	15.24 mm	0.6 in	18-DIP	2 mcd	100 mW	Red		2 V
ON Semiconductor MAN6950	1.5	635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	15.24 mm	0.6 in	18-DIP	2.2 mcd	1.05 W	Red	2.5 V
ON Semiconductor MAN6940	2	635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.985 "	25.02 mm	19.05 mm	15.24 mm	0.6 in	18-DIP	2.2 mcd	1.2 W	Red	2.5 V
ON Semiconductor MAN6910E	2	635 nm	0.56 in	14.22 mm	Common Anode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.984 in	25 mm	19.05 mm	15.24 mm	0.6 in	18-DIP	2 mcd	100 mW	Red		2 V
ON Semiconductor MAN6980		635 nm	0.56 in	14.22 mm	Common Cathode	20 mA	7-Segment		0.315 " 0.75 in 8 mm 19.05 mm		0.48 in 12.2 mm				15.24 mm	10-DIP	2.2 mcd	600 mW	Red	2.5 V		1	0.6 in

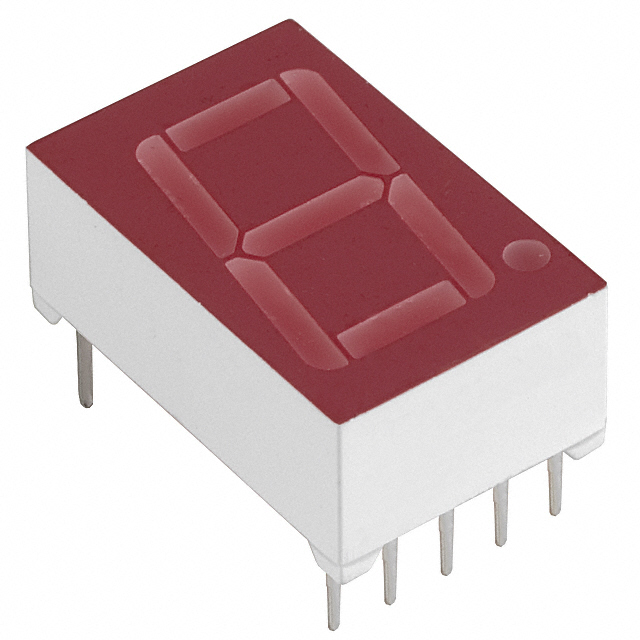

ON Semiconductor MAN6960E		635 nm	0.56 in	14.22 mm	Common Anode	20 mA	7-Segment	0.75 in	0.315 "	8 mm	0.488 in	12.4 mm	19.05 mm		15.24 mm	10-DIP	2.2 mcd	100 mW	Red		2 V	1	0.6 in
