SC-07 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 3MH, 7A ROHS COMPLIANT: YES

Part	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Voltage Rating - AC	Number of Lines	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)	Height (Max) [z]
KEMET SC-07-E300A	7 A	45 mOhm	Through Hole	34 mm	1.339 "	250 V	23 mm	0.906 in	4 PC Pin Horizontal No Base	120 °C	-40 C	Power Line	250 V	2	3 mH
KEMET SC-07-E042JH	7 A		Through Hole	34 mm	1.339 "	250 V			4 PC Pin Horizontal	120 °C	-40 C	Power Line	250 V	2	4.2 mH	1.063 in	27 mm
KEMET SC-07-650	7 A		Through Hole	35 mm	1.378 "	250 V			Vertical No Base 4 PC Pin	105 ░C	-40 C	Power Line	250 V	2	6.5 mH		1.378 in	40 mOhm	35 mm

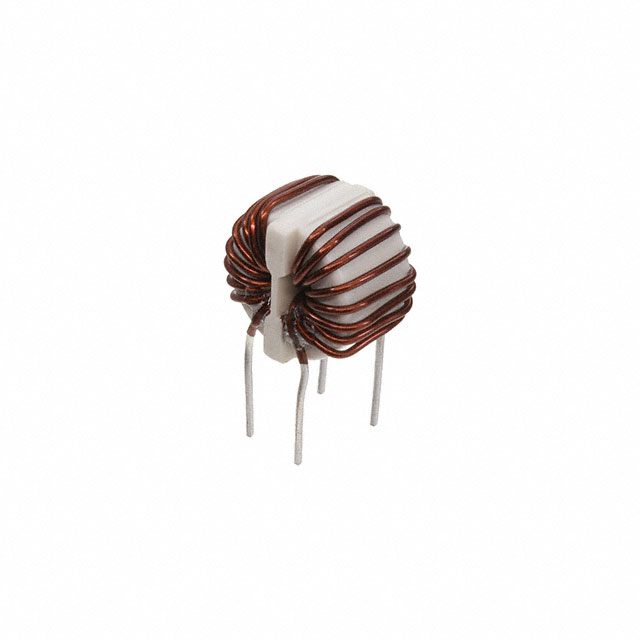

KEMET SC-07-030V	7 A	14 mOhm	Through Hole	25 mm	0.984 "	250 V			Vertical No Base 4 PC Pin	120 °C	-40 C	Power Line	250 V	2	100 kHz 360 µH	0.984 in	25 mm
KEMET SC-07-100	7 A	14 mOhm	Through Hole	25 mm	0.984 "	250 V			Vertical No Base 4 PC Pin	105 ░C	-40 C	Power Line	250 V	2	650 µH	0.984 in	25 mm
