333-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 7POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Color | Card Type | Gender | Read Out | Number of Positions/Bay/Row | Contact Finish | Pitch | Pitch | Contact Material | Number of Positions | Termination | Contact Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

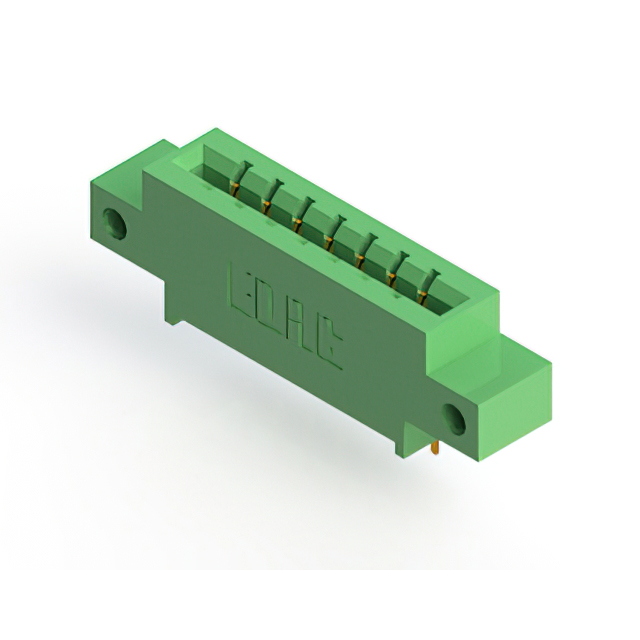

 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Right Angle Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm |

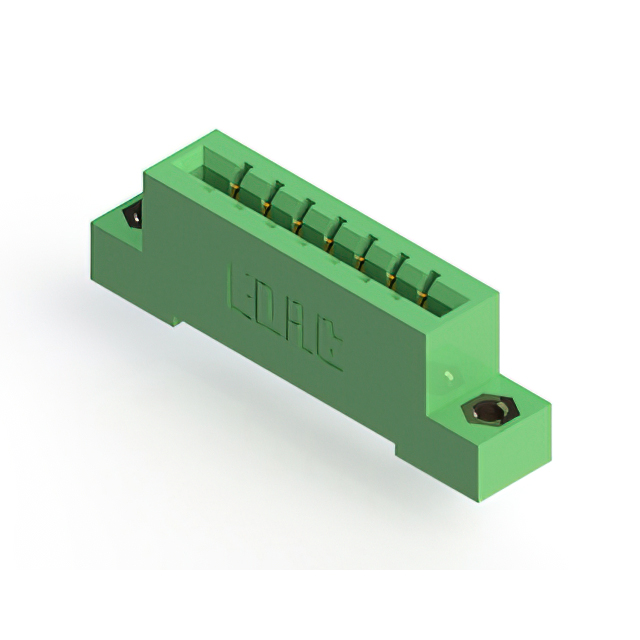

 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Right Angle Through Hole | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Solder | Cantilever | 1 | -40 C | 105 ░C | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Right Angle Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Through Hole | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Solder | Cantilever | 1 | -40 C | 105 ░C | Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Right Angle Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Non Specified - Single Edge | Female | Single | 7 | Gold | 3.96 mm | 0.156 in | Copper Alloy | 7 | Wire Wrap | Cantilever | 1 | -40 C | 105 ░C | Through Hole | 0.128 " | 3.25 mm |
