PUP6C04 Series
Manufacturer: Panduit Corp
Beta
⌘K

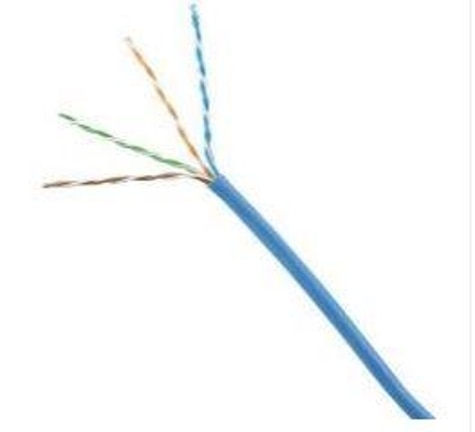

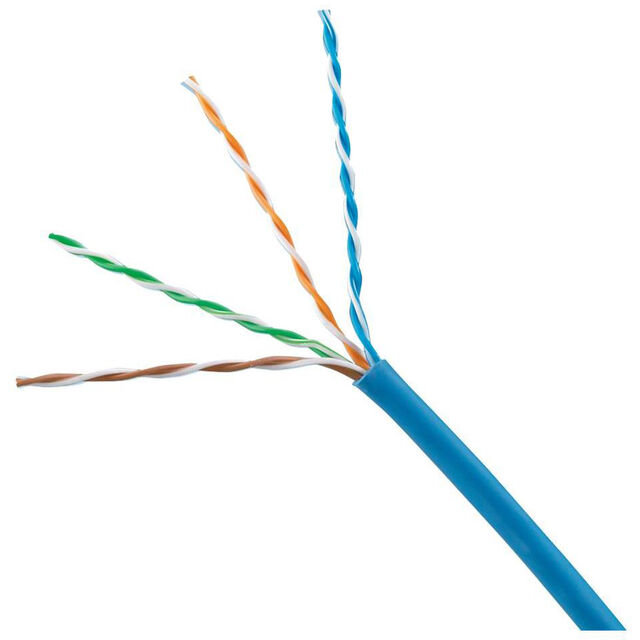

MULTI-CONDUCTOR CABLES COPPER CABLE, CAT 6, 4-PAIR, 23 AWG, U/U
| Part | Cable Type | Number of Conductors | Wire Gauge | Voltage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | ||||||||||||||||
 Panduit Corp | Multi-Pair Cat6 | 8 | 23 AWG | 80 V | Copper | -20 ░C | 90 °C | 304.8 m | 1000 ft | Solid | 0.205 in | 5.21 mm | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | |
 Panduit Corp | Multi-Pair Cat6 | 8 | 24 AWG | 80 V | Copper | 304.8 m | 1000 ft | Solid | 0.23 in | 5.84 mm | Orange | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | Foil | ||
 Panduit Corp | ||||||||||||||||
Panduit Corp | Multi-Pair Cat6 | 8 | 24 AWG | 80 V | Copper | 304.8 m | 1000 ft | Solid | 0.23 in | 5.84 mm | Red | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | Foil | ||
 Panduit Corp | Multi-Pair Cat6 | 8 | 23 AWG | 80 V | Copper | -20 ░C | 90 °C | 304.8 m | 1000 ft | Solid | 0.205 in | 5.21 mm | Green | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | |
Panduit Corp | Multi-Pair Cat6 | 8 | 23 AWG | 80 V | Copper | -20 ░C | 90 °C | 304.8 m | 1000 ft | Solid | 0.205 in | 5.21 mm | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | |
Panduit Corp | ||||||||||||||||
 Panduit Corp | Multi-Pair Cat6 | 8 | 23 AWG | 80 V | Copper | -20 ░C | 90 °C | 304.8 m | 1000 ft | Solid | 0.205 in | 5.21 mm | White | Low Smoke Poly-Vinyl Chloride (LSPVC) | Fluorinated Ethylene-Propylene (FEP) | |
Panduit Corp |
