5279/19C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

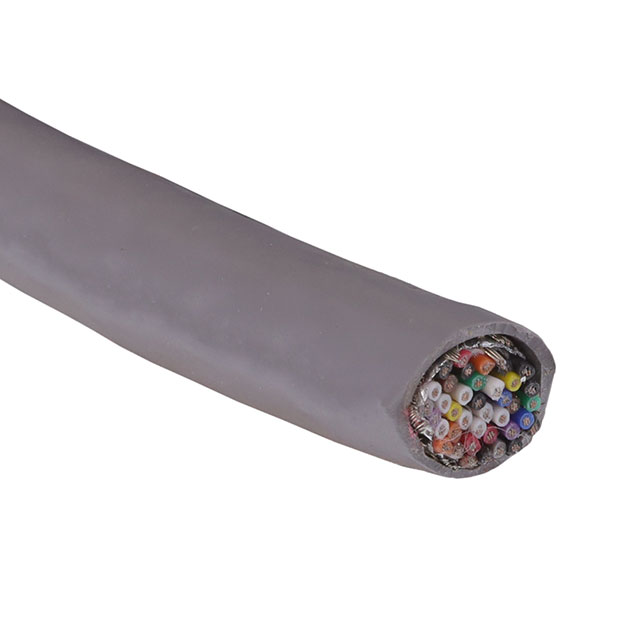

MULTI-PAIR 38COND 24AWG
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Cable Type | Jacket Color | Conductor Material | Conductor Insulation | Features | Wire Gauge | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Ratings | Jacket (Insulation) Material | Usage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | Braid Foil | Multi-Pair | Slate | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 24 AWG | 38 | 7 | 32 AWG | 300 VDC | ISO 10993 | Poly-Vinyl Chloride (PVC) | Communication Control | 152.4 m | 500 ft | 11.61 mm | 0.457 in | -35 °C | 105 ░C |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.813 mm | 0.032 in | Braid Foil | Multi-Pair | Black | Copper Tinned | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | 24 AWG | 38 | 7 | 32 AWG | 300 VDC | ISO 10993 | Poly-Vinyl Chloride (PVC) | Communication Control | 304.8 m | 1000 ft | 11.61 mm | 0.457 in | -35 °C | 105 ░C |
