1216C Series

Catalog

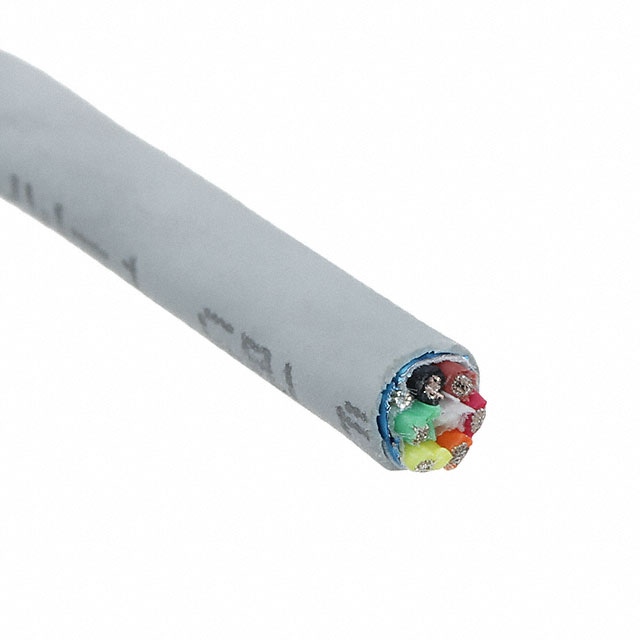

MULTI-CONDUCTOR CABLES 24 AWG, 6 CONDUCTOR COMMUNICATION CABLE, SHIELDED, 500 FT - SLATE

Part	Shield Coverage	Shield Material	Wire Gauge	Cable Type	Conductor Insulation	Jacket Color	Conductor Material	Shield Type	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Voltage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]
ALPHA WIRE 1216C SL002	100 %	Aluminum	24 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Slate	Copper Tinned	Foil	Poly-Vinyl Chloride (PVC)	152.4 m	500 ft	7	32 AWG	0.813 mm	0.032 in	Drain Wire	300 VDC	6	5.11 mm	0.201 in	Communication Control	80 °C	-20 ░C
ALPHA WIRE 1216C SL005	100 %	Aluminum	24 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Slate	Copper Tinned	Foil	Poly-Vinyl Chloride (PVC)			7	32 AWG	0.813 mm	0.032 in	Drain Wire	300 VDC	6	5.11 mm	0.201 in	Communication Control	80 °C	-20 ░C	100 ft	30.5 m
ALPHA WIRE 1216C SL001	100 %	Aluminum	24 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Slate	Copper Tinned	Foil	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	7	32 AWG	0.813 mm	0.032 in	Drain Wire	300 VDC	6	5.11 mm	0.201 in	Communication Control	80 °C	-20 ░C
