796911 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLK 4P SIDE ENT 5.08MM PCB
| Part | Clamp Material - Plating | Contact Material - Plating | Screw Material - Plating | Screw Thread | Number of Levels | Mating Orientation | Positions Per Level | Features | Current | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Pitch | Pitch | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Tin Plated | Brass - Nickel Plated | M3 | 1 | Horizontal with Board | 4 | Interlocking (Side) | 17.5 A | Screw - Rising Cage Clamp | 30 AWG | 12 AWG | 300 VDC | 5.08 mm | 0.2 in | Through Hole | Green |

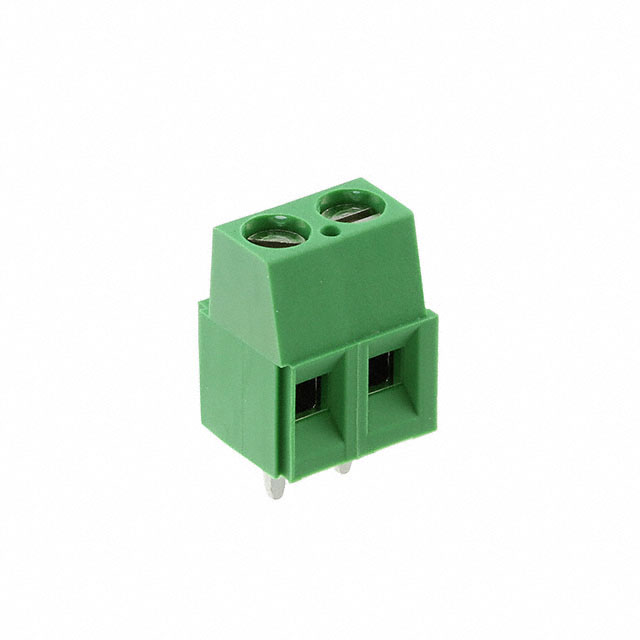

 TE Connectivity AMP Connectors | Brass - Nickel Plated | Brass - Tin Plated | Brass - Nickel Plated | M3 | 1 | Horizontal with Board | 2 | Interlocking (Side) | 17.5 A | Screw - Rising Cage Clamp | 30 AWG | 12 AWG | 300 VDC | 5.08 mm | 0.2 in | Through Hole | Green |
