PM324MRAO Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

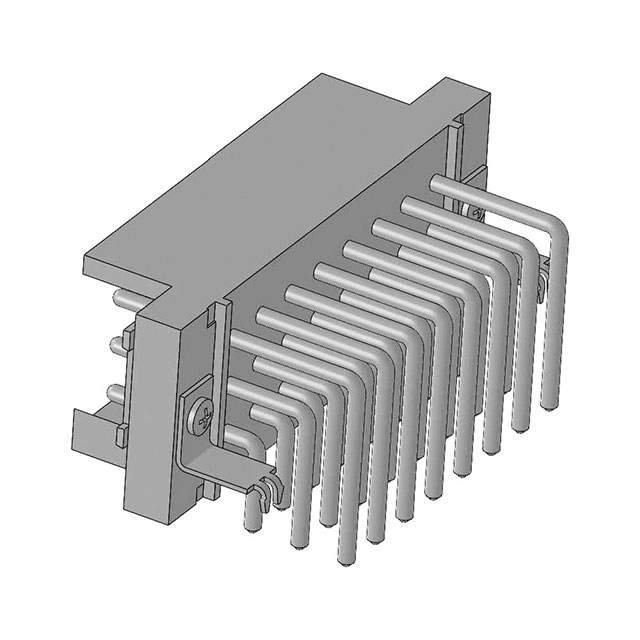

POWERMOD 3X24PIN RIGHT ANGLE PCB
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions | Features | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Termination | Shrouding | Insulation Color | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] | Connector Type | Mounting Type | Number of Rows [custom] | Insulation Material | Current Rating (Amps) | Contact Finish - Post [custom] | Contact Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | 0.25 µm | 10 µin | Male Pin Power | 0.197 " | 5 mm | Circular | 24 | Board Lock Mounting Bracket | 600 V | 0.197 in | 5 mm | Solder | Shrouded - 2 Wall | Black | Gold | UL94 V-0 | 180 °C | -55 C | All | 3.81 mm | 0.15 in | 20.32 mm | 0.8 in | Header | Right Angle Through Hole | 3 | Polyphenylene Sulfide (PPS) | 30 A | Tin Alloy | Copper Alloy | Board to Board Cable |
