HDC HK/HWK Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RECTANGULAR CONTACT INSERT

Part	Housing Material	Material Flammability Rating	Voltage Rating	Size	Termination Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Gender	Current Rating (Amps)	Contact Finish	Contact Material	Number of Positions	Number of Positions [Max]	Number of Positions
TE Connectivity AMP Connectors T2100322201-000	Polycarbonate (PC)	UL94 V-0	160 V 400 V	H10B	Crimp	Insert without Contacts	125 °C	-40 C	CDF DDF	Ground	8 24	Female	10 A 16 A
TE Connectivity AMP Connectors T2100122201-000	Polycarbonate (PC)	UL94 V-0	400 V	H24B	Screw	Insert	125 °C	-40 C		Ground	4 8	Female	16 A 80 A	Silver	Copper Alloy
TE Connectivity AMP Connectors T2120142101-000			250 V 690 V	H16B	Crimp	Insert without Contacts	125 °C	-40 C	CDM DDM			Male	10 A 40 A			Ground	2 12
TE Connectivity AMP Connectors T2100042101-000			690 V	H16B	Screw	Insert	125 °C	-40 C				Male	80 A			4+Ground
TE Connectivity AMP Connectors T2120043101-000	Polycarbonate (PC)	UL94 V-0	690 V	H16B	Screw	Insert	125 °C	-40 C				Male	80 A	Silver		4+Ground
TE Connectivity AMP Connectors T2100322101-000			160 V 400 V	H10B	Crimp	Insert without Contacts	125 °C	-40 C	CDM DDM	Ground	8 24	Male	10 A 16 A

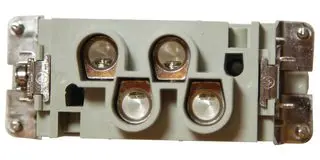

TE Connectivity AMP Connectors T2100042201-000	Polycarbonate (PC)	UL94 V-0	690 V	H16B	Screw	Insert	125 °C	-40 C				Female	80 A	Silver	Copper Alloy	4+Ground
TE Connectivity AMP Connectors T2106062101-000	Polycarbonate (PC)	UL94 V-0	400 V 690 V	H16B	Screw	Insert	125 °C	-40 C				Male	16 A	Silver	Copper Alloy	Ground		6
TE Connectivity AMP Connectors T2120043201-000			690 V	H16B	Screw	Insert	125 °C	-40 C				Female	80 A			4+Ground

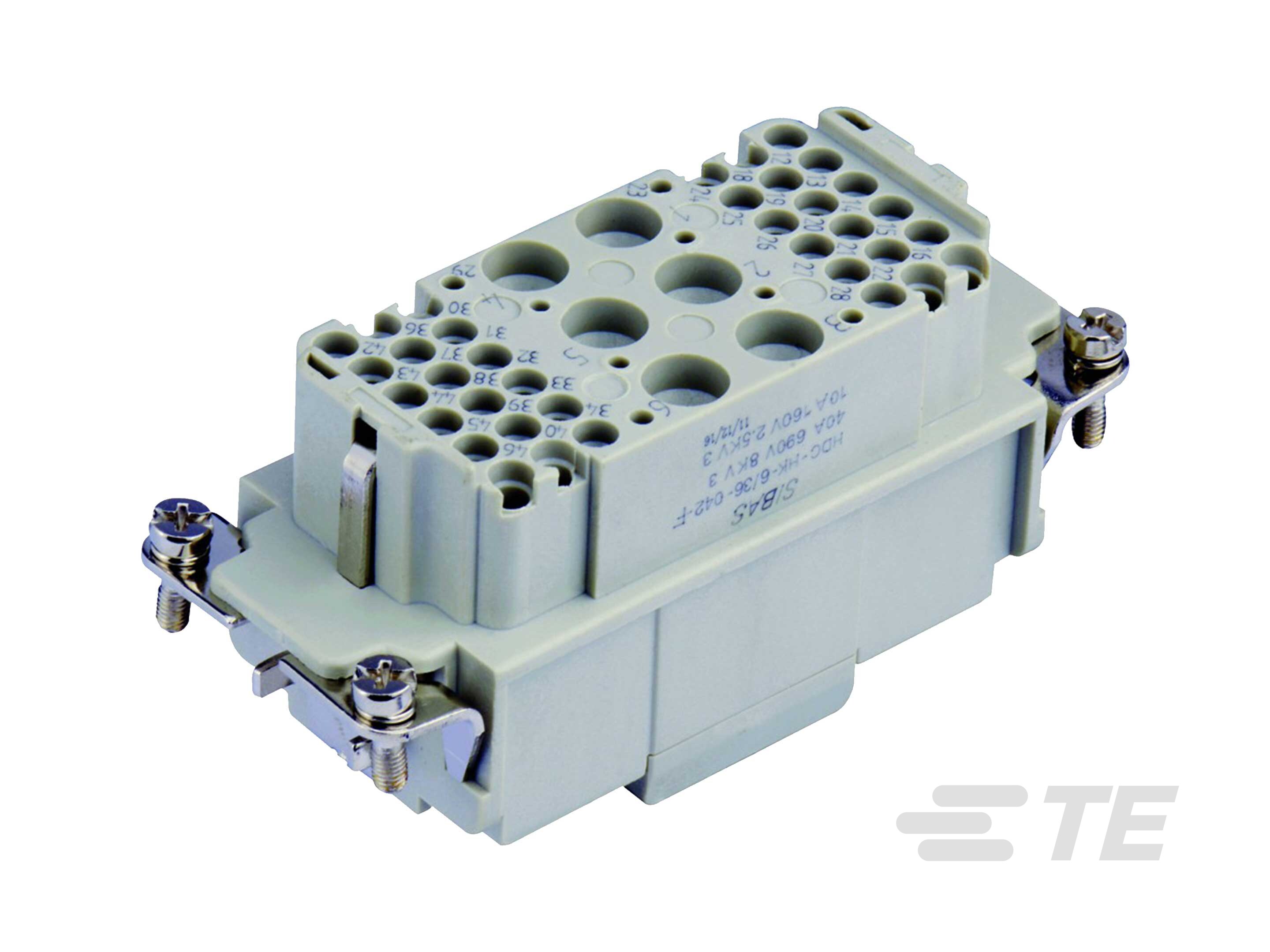

TE Connectivity AMP Connectors T2120422201-000	Polycarbonate (PC)	UL94 V-0	250 V 690 V	H16B	Crimp	Insert without Contacts	125 °C	-40 C	CDF DDF			Female	10 A 40 A			Ground		6 36
