ADS8326 Series

16-Bit, Pseudo-Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC

Catalog

16-Bit, Pseudo-Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Reference Type	Data Interface	Configuration	Voltage - Supply, Analog	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of Inputs	Ratio - S/H:ADC	Input Type	Sampling Rate (Per Second)	Architecture	Number of Bits	Number of A/D Converters	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Supplied Contents	Input Range [Max]	Input Range [Min]	Power (Typ) @ Conditions	Utilized IC / Part
Texas Instruments ADS8326IDGKT	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments ADS8326IDRBR	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-VDFN Exposed Pad			8-SON (3x3)
Texas Instruments ADS8326IDRBT	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-VDFN Exposed Pad			8-SON (3x3)
Texas Instruments ADS8326IBDRBR	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-VDFN Exposed Pad			8-SON (3x3)
Texas Instruments ADS8326IDGKR	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-MSOP 8-TSSOP	0.118 in	3 mm

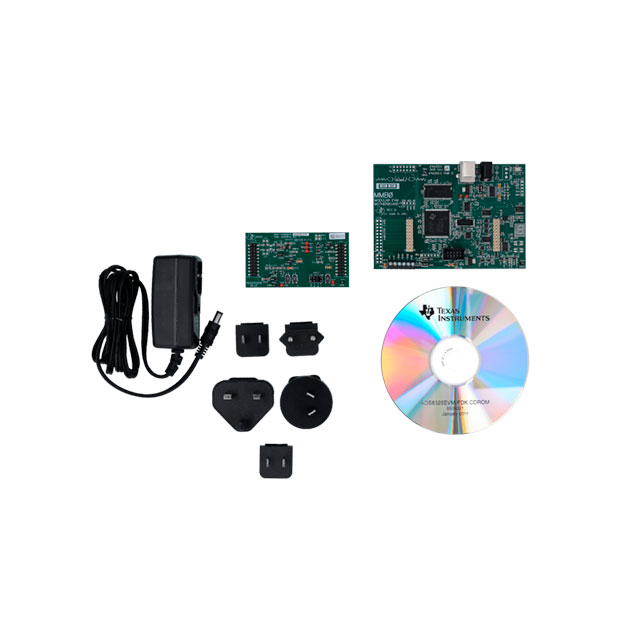

Texas Instruments ADS8326EVM					SPI								250 k		16	1					Board(s)	5 V	0 V	10 mW	ADS8326
Texas Instruments ADS8326IBDGKR	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments ADS8326EVM-PDK					SPI								250 k		16	1					Board(s)	5 V	0 V	10 mW	ADS8326
Texas Instruments ADS8326IBDGKT	Surface Mount	85 °C	-40 °C	External	SPI	S/H-ADC	5 V	2.7 V	3.6 V	1	1:1	Pseudo-Differential Single Ended	250 k	SAR	16	1	8-MSOP 8-TSSOP	0.118 in	3 mm

Catalog

16-Bit, Pseudo-Diff Input, 250kSPS Serial Out, 2.7V-to-5.5V Micropower Sampling ADC

Key Features

• 16 Bits No Missing Codes (Full-Supply Range, High or Low Grade)Very Low Noise: 3LSBPPExcellent Linearity:±1LSB typ, ±1.5LSB max INL±0.6LSB typ, ±1LSB max DNL±1mV max Offset±12LSB typ Gain ErrormicroPower:10mW at 5V, 250kHz4mW at 2.7V, 200kHz2mW at 2.7V, 100kHz0.2mW at 2.7V, 10kHzMSOP-8 and SON-8 Packages(SON-8 package same as 3x3 QFN)16-Bit Upgrade to the 12-Bit ADS7816 and ADS7822Pin-Compatible with the ADS7816, ADS7822, ADS7826, ADS7827, ADS7829, ADS8320, and ADS8325Serial (SPI/SSI) InterfaceAPPLICATIONSBattery-Operated SystemsRemote Data AcquisitionIsolated Data AcquisitionSimultaneous Sampling, MultichannelSystemsIndustrial ControlsRoboticsVibration AnalysisAll trademarks are the property of their respective owners.16 Bits No Missing Codes (Full-Supply Range, High or Low Grade)Very Low Noise: 3LSBPPExcellent Linearity:±1LSB typ, ±1.5LSB max INL±0.6LSB typ, ±1LSB max DNL±1mV max Offset±12LSB typ Gain ErrormicroPower:10mW at 5V, 250kHz4mW at 2.7V, 200kHz2mW at 2.7V, 100kHz0.2mW at 2.7V, 10kHzMSOP-8 and SON-8 Packages(SON-8 package same as 3x3 QFN)16-Bit Upgrade to the 12-Bit ADS7816 and ADS7822Pin-Compatible with the ADS7816, ADS7822, ADS7826, ADS7827, ADS7829, ADS8320, and ADS8325Serial (SPI/SSI) InterfaceAPPLICATIONSBattery-Operated SystemsRemote Data AcquisitionIsolated Data AcquisitionSimultaneous Sampling, MultichannelSystemsIndustrial ControlsRoboticsVibration AnalysisAll trademarks are the property of their respective owners.

Description
