DS90UB635-Q1 Series
Automotive 4.16-Gbps FPD-Link III CSI-2 serializer
Manufacturer: Texas Instruments
Catalog
Automotive 4.16-Gbps FPD-Link III CSI-2 serializer
Key Features
• AEC-Q100 qualified for automotive applications:Device temperature grade 2: –40°C to +105°C ambient operating temperature rangeISO 10605 and IEC 61000-4-2 ESD compliantPower-over-Coax (PoC) compatible transceiver4.16-Gbps grade serializer supports high-speed sensors including full HD 1080p 2.3MP 60-fps and 4MP 30-fps imagersD-PHY v1.2 and CSI-2 v1.3 compliant system interfaceUp to 4 data lanes at 600 Mbps - 832 Mbps/laneSupports up to four virtual channelsPrecision multi-camera clocking and synchronizationFlexible programmable output clock generatorAdvanced data protection and diagnostics including CRC data protection, sensor data integrity check, I2C write protection, voltage and temperature measurement, programmable alarm, BIST, pattern generation, and line fault detectionSupports single-ended coaxial or Shielded Twist-Pair (STP) cableUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUSingle 1.8 V power supplyLow (0.28 W typical) power consumptionUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUUnique DIE-ID for counterfeit protectionCompatible with the DS90UB638-Q1 deserializer and the DS90UB662-Q1 HubSmall 5-mm × 5-mm VQFN package and PoC solution size for compact camera module designsAEC-Q100 qualified for automotive applications:Device temperature grade 2: –40°C to +105°C ambient operating temperature rangeISO 10605 and IEC 61000-4-2 ESD compliantPower-over-Coax (PoC) compatible transceiver4.16-Gbps grade serializer supports high-speed sensors including full HD 1080p 2.3MP 60-fps and 4MP 30-fps imagersD-PHY v1.2 and CSI-2 v1.3 compliant system interfaceUp to 4 data lanes at 600 Mbps - 832 Mbps/laneSupports up to four virtual channelsPrecision multi-camera clocking and synchronizationFlexible programmable output clock generatorAdvanced data protection and diagnostics including CRC data protection, sensor data integrity check, I2C write protection, voltage and temperature measurement, programmable alarm, BIST, pattern generation, and line fault detectionSupports single-ended coaxial or Shielded Twist-Pair (STP) cableUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUSingle 1.8 V power supplyLow (0.28 W typical) power consumptionUltra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECUUnique DIE-ID for counterfeit protectionCompatible with the DS90UB638-Q1 deserializer and the DS90UB662-Q1 HubSmall 5-mm × 5-mm VQFN package and PoC solution size for compact camera module designs
Description
AI
The DS90UB635-Q1 serializer is part of TI’s FPD-Link III device family designed to support high-speed raw data sensors including 2.3MP imagers at 60-fps and as well as 4MP, 30-fps cameras, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The chip delivers a 4.16-Gbps forward channel and an ultra-low latency, 50-Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. The DS90UB635-Q1 features advanced data protection and diagnostic features to support ADAS and autonomous driving. Together with a companion deserializer, the DS90UB635-Q1 delivers precise multi-camera sensor clock and sensor synchronization.

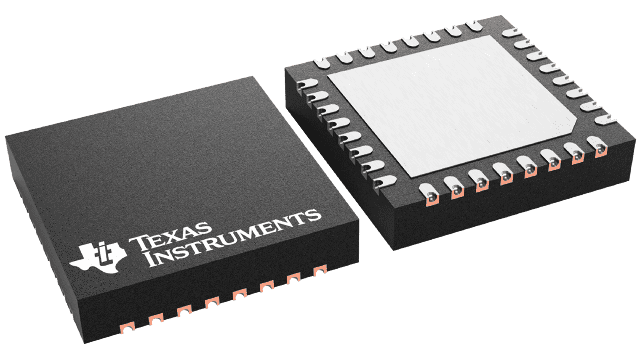

The DS90UB635-Q1 is fully AEC-Q100 qualified with a -40°C to 105°C wide temperature range. The serializer comes in a small 5-mm × 5-mm VQFN package for space-constrained sensor applications.
The DS90UB635-Q1 serializer is part of TI’s FPD-Link III device family designed to support high-speed raw data sensors including 2.3MP imagers at 60-fps and as well as 4MP, 30-fps cameras, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The chip delivers a 4.16-Gbps forward channel and an ultra-low latency, 50-Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. The DS90UB635-Q1 features advanced data protection and diagnostic features to support ADAS and autonomous driving. Together with a companion deserializer, the DS90UB635-Q1 delivers precise multi-camera sensor clock and sensor synchronization.
The DS90UB635-Q1 is fully AEC-Q100 qualified with a -40°C to 105°C wide temperature range. The serializer comes in a small 5-mm × 5-mm VQFN package for space-constrained sensor applications.
