9882MN Series
Manufacturer: Belden Inc.
Beta
⌘K

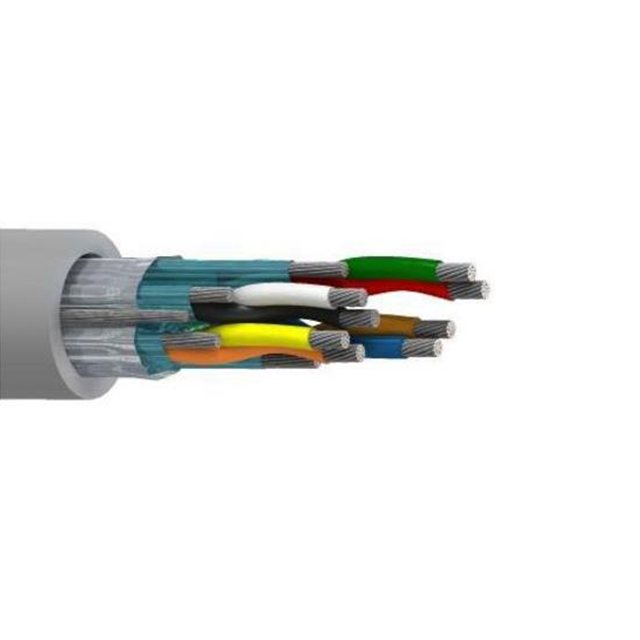

MULTI-PAIR 8COND 20AWG GRAY
| Part | Shield Coverage | Shield Material | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Voltage | Features | Number of Conductors | Length [x] | Length [x] | Usage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Insulation | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | 20 AWG | Poly-Vinyl Chloride (PVC) | 26 | 34 AWG | UL Style 2937 | 300 VDC | Drain Wire | 8 | 100 ft | 30.5 m | Audio Control Instrumentation | Multi-Pair | 0.406 mm | 0.016 in | Gray | Polypropylene (PP) | Foil | 0.299 " | 7.6 mm | 80 °C | -20 ░C | ||
Belden Inc. | 100 % | Aluminum | Copper Tinned | 20 AWG | Poly-Vinyl Chloride (PVC) | 26 | 34 AWG | UL Style 2937 | 300 VDC | Drain Wire | 8 | 100 ft | 30.5 m | Audio Control Instrumentation | Multi-Pair | 0.406 mm | 0.016 in | Yellow | Polypropylene (PP) | Foil | 0.299 " | 7.6 mm | 80 °C | -20 ░C | ||
Belden Inc. | 100 % | Aluminum | Copper Tinned | 20 AWG | Poly-Vinyl Chloride (PVC) | 26 | 34 AWG | UL Style 2937 | 300 VDC | Drain Wire | 8 | Audio Control Instrumentation | Multi-Pair | 0.406 mm | 0.016 in | Blue | Polypropylene (PP) | Foil | 0.299 " | 7.6 mm | 80 °C | -20 ░C | 304.8 m | 1000 ft |
