0330-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Square Pin Size	Accepts Square Pin Size	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Tail Type	Contact Material	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0330-0-15-15-47-14-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.25 Ám	10 Áin

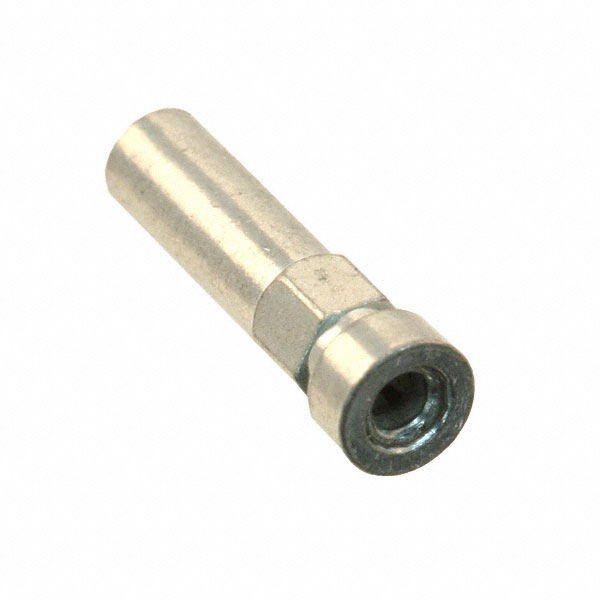

Mill-Max Manufacturing Corp. 0330-0-15-01-47-01-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Tin-Lead	5.08 Ám	200 Áin
Mill-Max Manufacturing Corp. 0330-0-15-80-47-14-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0330-0-15-01-47-27-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0330-0-15-01-47-14-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0330-0-15-80-47-27-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0330-0-15-15-47-27-10-0	-55 C	125 °C	0.025 in	0.64 mm	0.051 in	1.3 mm	0.079 in	2.01 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	7.24 mm	0.285 in	No Tail	Beryllium Copper	Hex Press-Fit	0.09 in	2.29 mm	0.31 in	7.87 mm	Gold	0.76 Ám	30 Áin
