5164C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

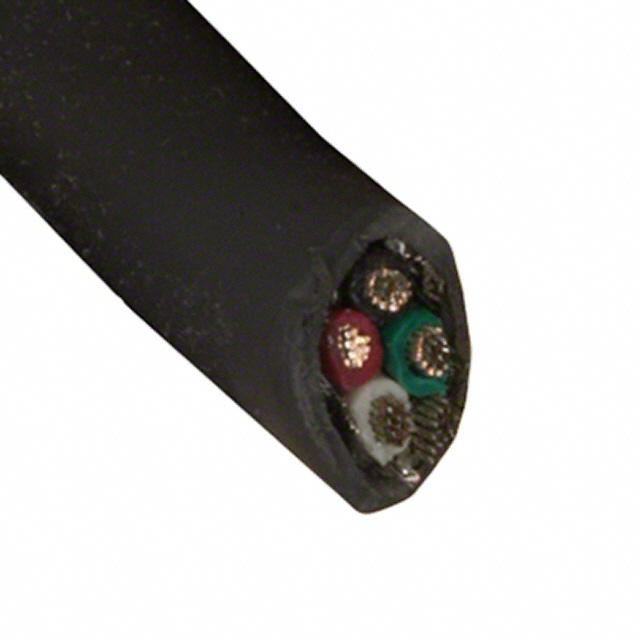

MULTICONDUCTOR CABLE, XTRA GUARD® 1, SHIELDED, 4 CONDUCTOR, 18 AWG, 0.81 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Jacket Color | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Jacket (Insulation) Material | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Material | Length | Length | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | 4 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | 300 VDC | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 152.4 m | 500 ft | Multi-Conductor | Braid Foil | 0.287 in | 7.29 mm | 18 AWG |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | 4 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | 300 VDC | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | Multi-Conductor | Braid Foil | 0.287 in | 7.29 mm | 18 AWG | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Slate | 4 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993 | Poly-Vinyl Chloride (PVC) | 300 VDC | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 304.8 m | 1000 ft | Multi-Conductor | Braid Foil | 0.287 in | 7.29 mm | 18 AWG |
