306-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

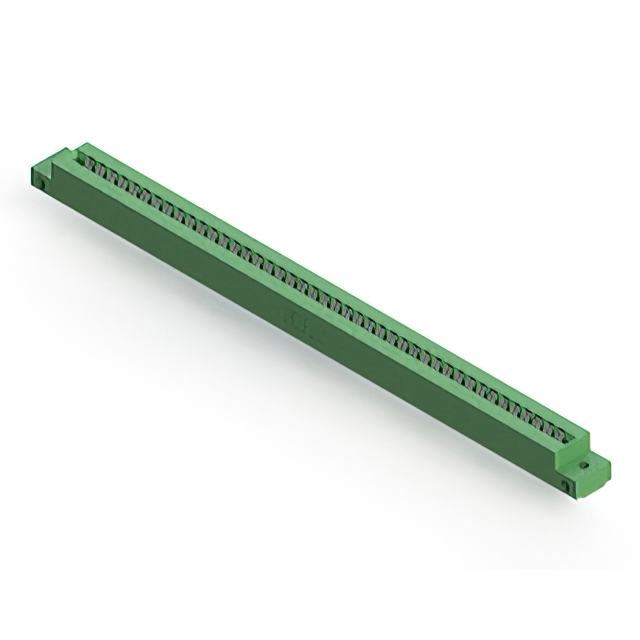

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 43 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Termination | Number of Positions | Pitch | Pitch | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Color | Contact Type | Mounting Type | Gender | Card Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

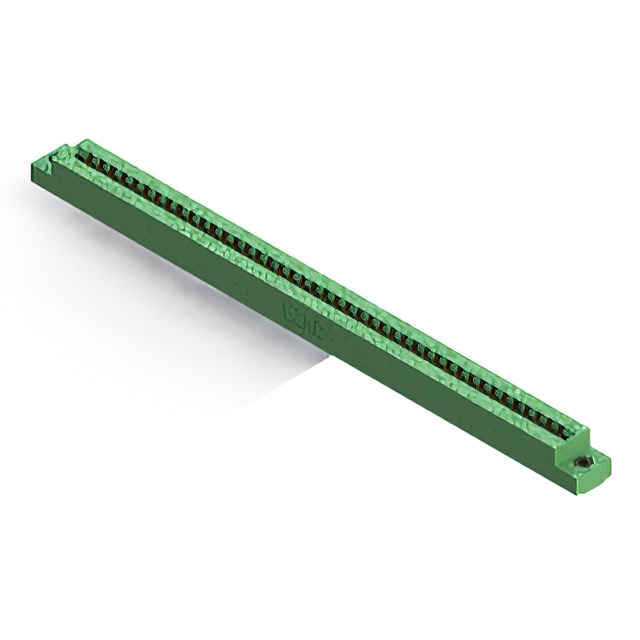

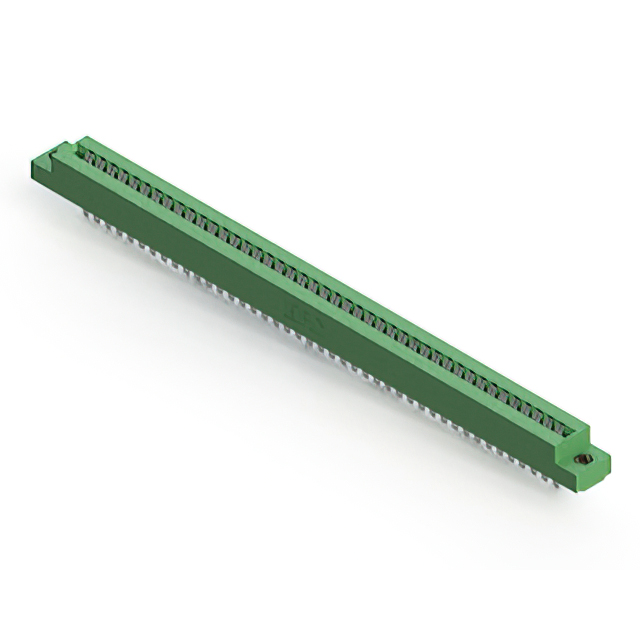

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Through Hole | Female | Non Specified - Dual Edge | |

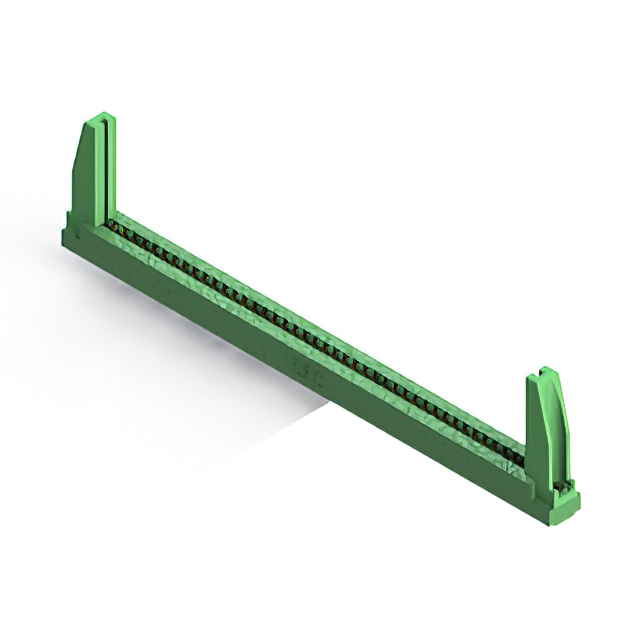

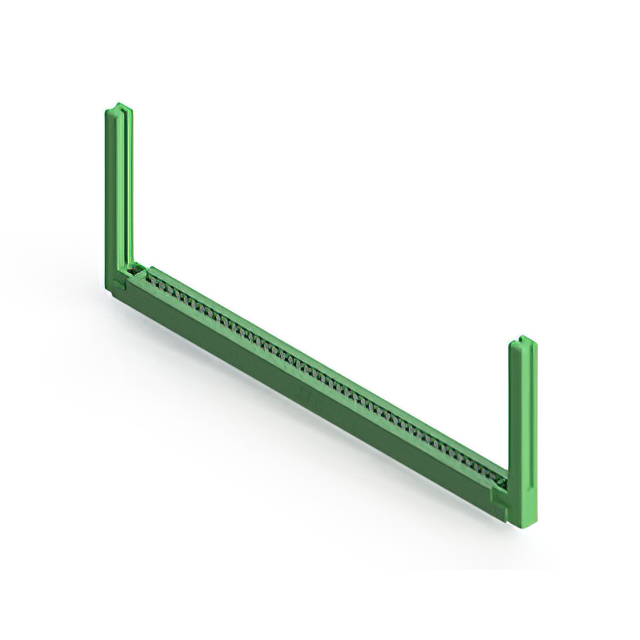

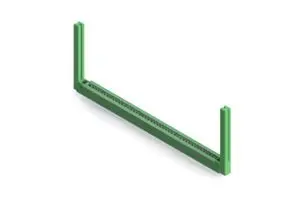

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Green | Cantilever | Panel Mount Through Hole | Female | Non Specified - Dual Edge | Card Guides | ||||

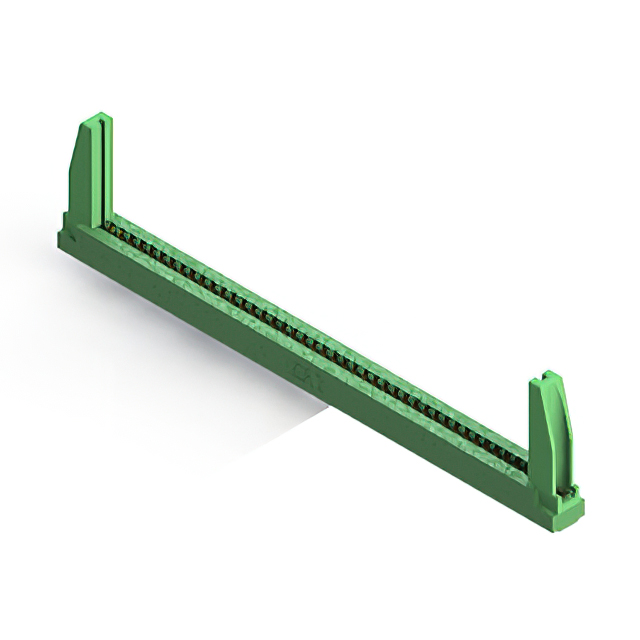

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Green | Cantilever | Panel Mount Through Hole | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Panel Mount Through Hole | Female | Non Specified - Dual Edge | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Panel Mount Through Hole | Female | Non Specified - Dual Edge | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | Flush Mount M3 Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Panel Mount Through Hole | Female | Non Specified - Dual Edge | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 2 | Solder Eyelet(s) | 86 | 3.96 mm | 0.156 in | 43 | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Green | Cantilever | Panel Mount | Female | Non Specified - Dual Edge | |||||

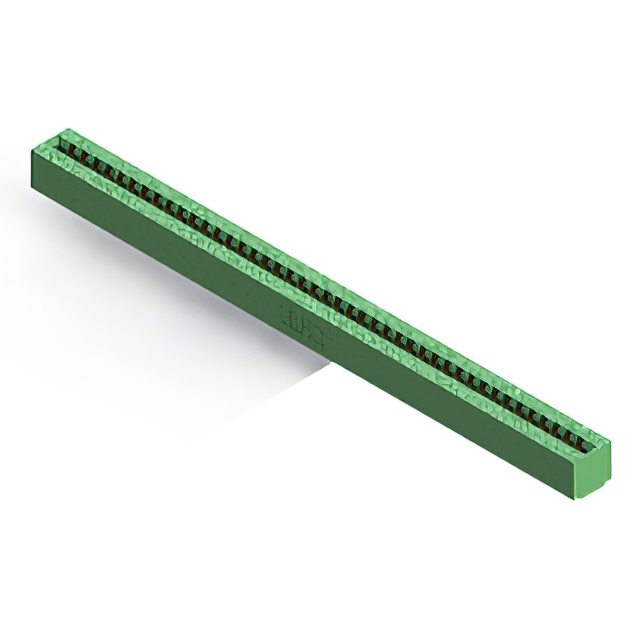

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Through Hole | Female | Non Specified - Dual Edge | ||||

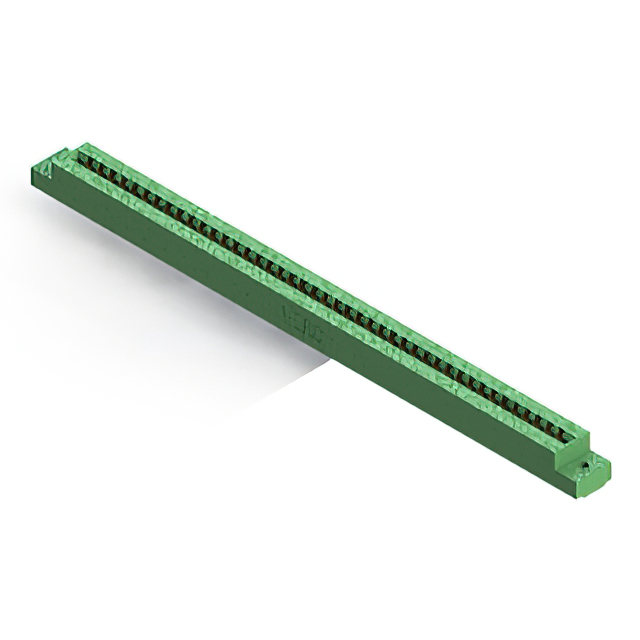

 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder | 86 | 3.96 mm | 0.156 in | 43 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Through Hole | Female | Non Specified - Dual Edge | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 2 | Solder Eyelet(s) | 86 | 3.96 mm | 0.156 in | 43 | Flush Mount M3 Threaded Insert Top Opening | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Cantilever | Panel Mount | Female | Non Specified - Dual Edge |
