CAT16 Series

Catalog

RES ARR 4 RES 2.2K OHM 1206

...

Part	Circuit Type	Number of Pins	Supplier Device Package	Power Per Element	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Resistors	Package / Case	Qualification	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance (Ohms)	Grade	Mounting Type	Temperature Coefficient	Resistance (Ohms) [custom]	Resistance (Ohms)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Size / Dimension [y]

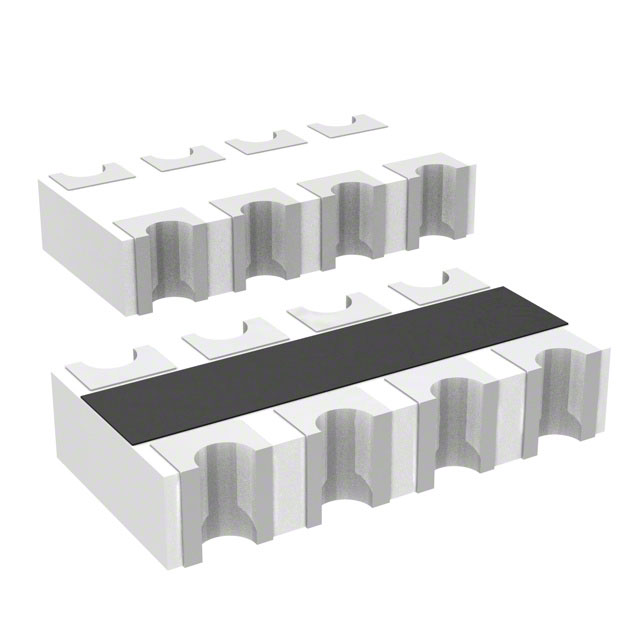

Bourns Inc. CAT16A-222J4LF	Isolated	8	1206	63 mW	5 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals	AEC-Q200	0.061 in	1.55 mm	0.126 "	3.2 mm	2.2 kOhms	Automotive	Surface Mount	200 ppm/°C
Bourns Inc. CAT16-181J4LF	Isolated	8	1206	62.5 mW	5 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals		0.061 in	1.55 mm	0.126 "	3.2 mm			Surface Mount	200 ppm/°C	180 Ohms
Bourns Inc. CAT16A-103J4LF	Isolated	8	1206	63 mW	5 %	0.65 mm	0.026 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals	AEC-Q200		1.5 mm		3.2 mm		Automotive	Surface Mount	200 ppm/°C		10k	0.126 in	0.059 "
Bourns Inc. CAT16A-221J4LF	Isolated	8	1206	63 mW	5 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals	AEC-Q200	0.061 in	1.55 mm	0.126 "	3.2 mm		Automotive	Surface Mount	200 ppm/°C	220 Ohms
Bourns Inc. CAT16-103J4LF	Isolated	8	1206	62.5 mW	5 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals		0.061 in	1.55 mm	0.126 "	3.2 mm			Surface Mount	200 ppm/°C		10k
Bourns Inc. CAT16-271J4LF	Isolated	8	1206	62.5 mW	5 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals		0.061 in	1.55 mm	0.126 "	3.2 mm	270 Ohms		Surface Mount	200 ppm/°C
Bourns Inc. CAT16-47R0F4LF	Isolated	8	1206	62.5 mW	1 %	0.6 mm	0.024 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals		0.063 "	1.6 mm	0.126 "	3.2 mm	47 Ohms		Surface Mount	200 ppm/°C

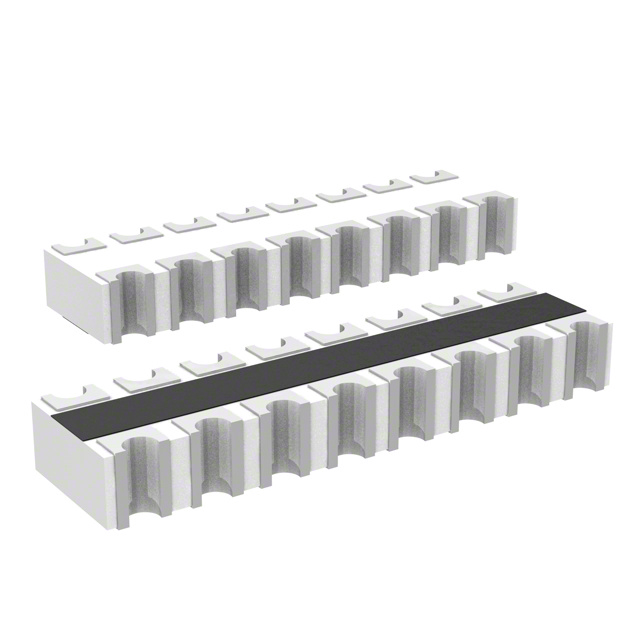

Bourns Inc. CAT16-LV4F12LF	Bussed	16		62.5 mW	1 %			-55 C	125 °C		2506 Concave Long Side Terminals		0.063 "	1.6 mm	0.252 in	6.4 mm			Surface Mount	200 ppm/°C					0.7 mm	0.028 "
Bourns Inc. CAT16A-101J4LF	Isolated	8	1206	63 mW	5 %	0.65 mm	0.026 in	-55 C	125 °C	4	1206 (3216 Metric) Concave Long Side Terminals	AEC-Q200		1.5 mm		3.2 mm		Automotive	Surface Mount	200 ppm/°C	100 Ohms		0.126 in	0.059 "

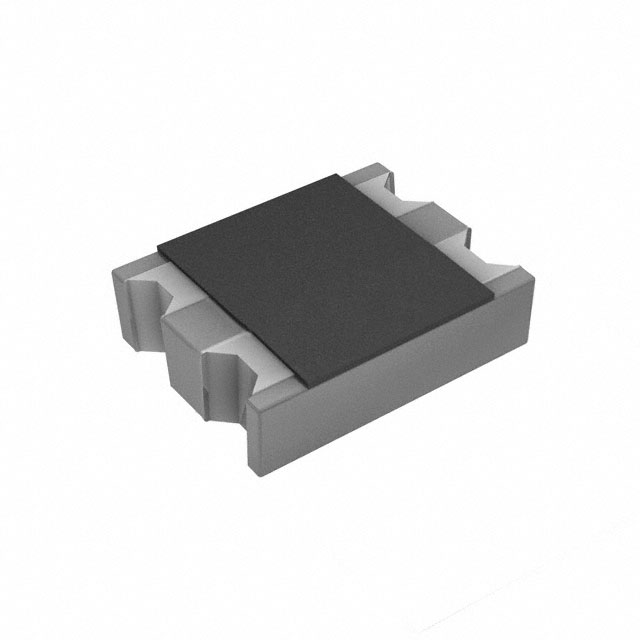

Bourns Inc. CAT16-000J2LF	Isolated	4	0606	62.5 mW				-55 C	125 °C	2	0606 Concave		0.063 "		0.063 "	1.6 mm	0 Ohms		Surface Mount						0.75 mm	0.03 "	Jumper	1.6 mm
