GBC04D Series

Catalog

CONN HEADER SMD 8POS 2.54MM

Part	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Post	Connector Type	Contact Material	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Type	Style	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Mounting Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]

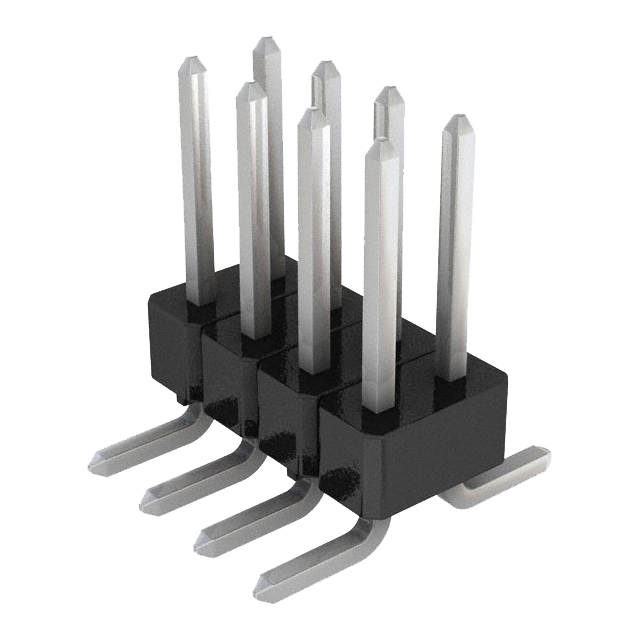

Sullins Connector Solutions GBC04DABN-M30	Solder	2.54 µm	100 µin	2	Tin	Breakaway Header	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	8	0.23 in	5.84 mm	Unshrouded	Gold	UL94 V-0	3 A	10 çin	0.25 çm	All	Male Pin	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	Nylon 9T Polyamide (PA9T)	Surface Mount	Black	2.54 mm	0.1 in
Sullins Connector Solutions GBC04DFBN-M30	Solder	2.54 µm	100 µin	2	Tin	Breakaway Header	Phosphor Bronze	Push-Pull	Square	0.1 in	2.54 mm	8	0.318 "		Unshrouded	Gold	UL94 V-0	3 A	10 çin	0.25 çm	All	Male Pin	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	Nylon 9T Polyamide (PA9T)	Surface Mount	Black	2.54 mm	0.1 in	8.08 mm
