X4BD40 Series

Catalog

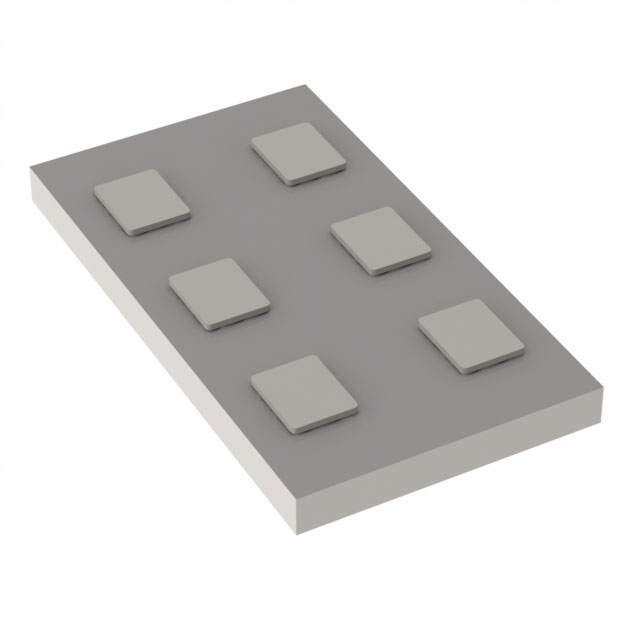

IC 5G BALUN 0603

Part	Pad Count	Package Name	Mounting Type	Impedance Ratio	Impedance - Unbalanced	Impedance - Balanced	Frequency Range (Max)	Frequency Range (Min)	Phase Difference Tolerance	Phase Difference	Return Loss (Min)	Return Loss (Min)	Insertion Loss (Max)
TTM Technologies, Inc. X4BD40L1-5050G	6 PC Pad	0603	Surface Mount	1:1	50 Ohm	50 Ohm	6 GHz	3 GHz
TTM Technologies, Inc. X4BD40L1-50200G	6 PC Pad	0603	Surface Mount	1:4	50 Ohm	200 Ohm	6 GHz	2.3 GHz	13 °	180 °	10dB 12dB	10 dB 12 dB	1.1 dB
TTM Technologies, Inc. X4BD40L1-50100G	6 PC Pad	0603	Surface Mount	1:2	50 Ohm	100 Ohm	6 GHz	2.3 GHz		7 °		10.5 dB	1.2 dB
