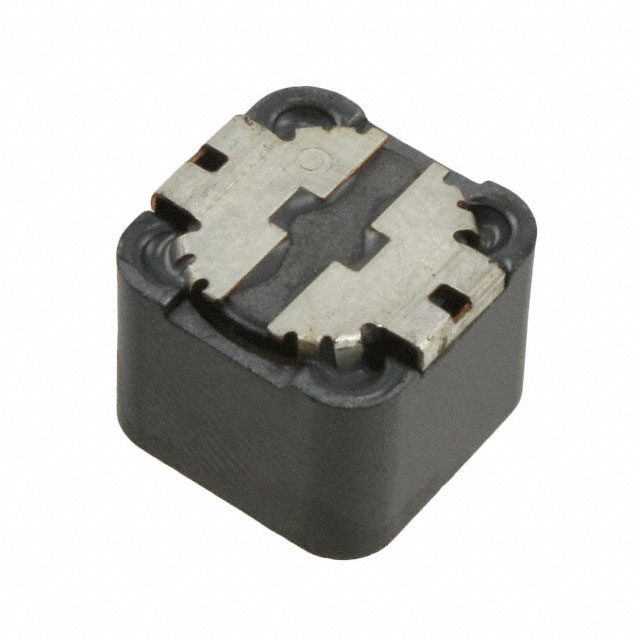

SRR1210 Series

Catalog

POWER INDUCTOR (SMD), 82 ΜH, 2.8 A, SHIELDED, 2.5 A, SRR1210 SERIES

Part	Type	Current - Saturation (Isat)	Mounting Type	Tolerance	Inductance	Frequency - Self Resonant	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Material - Core	Current Rating (Amps)	Q @ Freq	DC Resistance (DCR) [Max]
Bourns Inc. SRR1210-820M	Drum Core Wirewound	2.5 A	Surface Mount	20 %	82 µH	3.5 MHz	112 mOhm	10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	2.8 A	2.52 MHz 15
Bourns Inc. SRR1210-220M	Drum Core Wirewound	4.5 A	Surface Mount	20 %	22 µH	8 MHz	38 mOhm	10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	5.2 A	2.52 MHz 16
Bourns Inc. SRR1210-6R8Y	Drum Core Wirewound		Surface Mount	30 %	6.8 µH	20 MHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	7.9 A	7.96 MHz 12	15 mOhm
Bourns Inc. SRR1210-180M	Drum Core Wirewound	5.1 A	Surface Mount	20 %	18 µH	8 MHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	5.5 Amps	2.52 MHz 13	35 mOhm
Bourns Inc. SRR1210-391M	Drum Core Wirewound	1.1 A	Surface Mount	20 %	390 µH	1.3 MHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	1.3 A	16 796 kHz
Bourns Inc. SRR1210-471M	Drum Core Wirewound	1 A	Surface Mount	20 %	470 µH	850 kHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	1.2 A	12 796 kHz	820 mOhm
Bourns Inc. SRR1210-181M	Drum Core Wirewound	1.6 A	Surface Mount	20 %	180 µH	1.8 MHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	1.9 A	14 796 kHz	250 mOhm
Bourns Inc. SRR1210-102M	Drum Core Wirewound	700 mA	Surface Mount	20 %	1 mH	850 kHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	750 mA	22 796 kHz	1.65 Ohm
Bourns Inc. SRR1210-270M	Drum Core Wirewound	4.2 A	Surface Mount	20 %	27 µH	6.5 MHz	40 mOhm	10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	5 A	2.52 MHz 16
Bourns Inc. SRR1210-561M	Drum Core Wirewound	950 mA	Surface Mount	20 %	560 µH	850 kHz		10 mm	0.394 in	Shielded	Nonstandard	125 °C	-40 C	12 mm	0.472 in	0.472 "	12 mm	100 kHz	Ferrite	1.1 A	12 796 kHz
