7957A Series
Manufacturer: Belden Inc.
Beta
⌘K

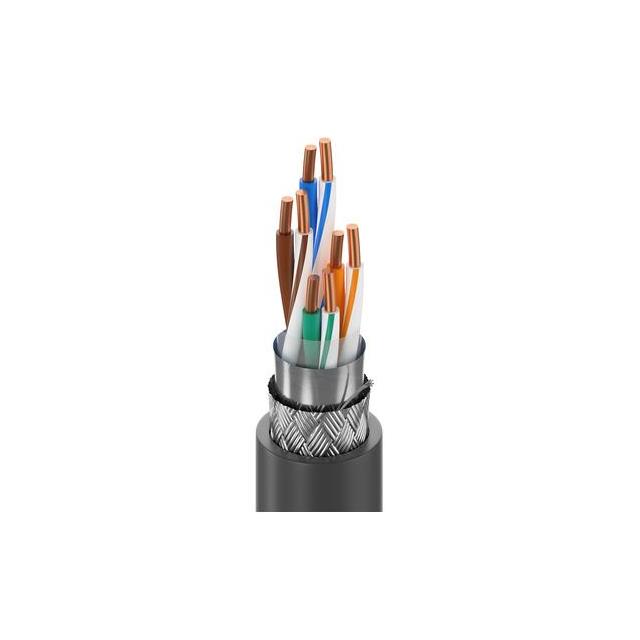

CABLE CAT5E 8CON 24AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Conductor Material | Wire Gauge | Conductor Insulation | Conductor Insulation | Features | Cable Type | Conductor Strand | Ratings | Shield Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | Teal | 8 | Copper Bare | 24 AWG | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant | Multi-Pair Cat5e | Solid | UL Style CMR | Braid Foil | Industrial Network | 0.33 in | 8.38 mm | -40 C | 75 ░C | 304.8 m | 1000 ft |
Belden Inc. | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | Red | 8 | Copper Bare | 24 AWG | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant | Multi-Pair Cat5e | Solid | UL Style CMR | Braid Foil | Industrial Network | 0.33 in | 8.38 mm | -40 C | 75 ░C | 304.8 m | 1000 ft |
